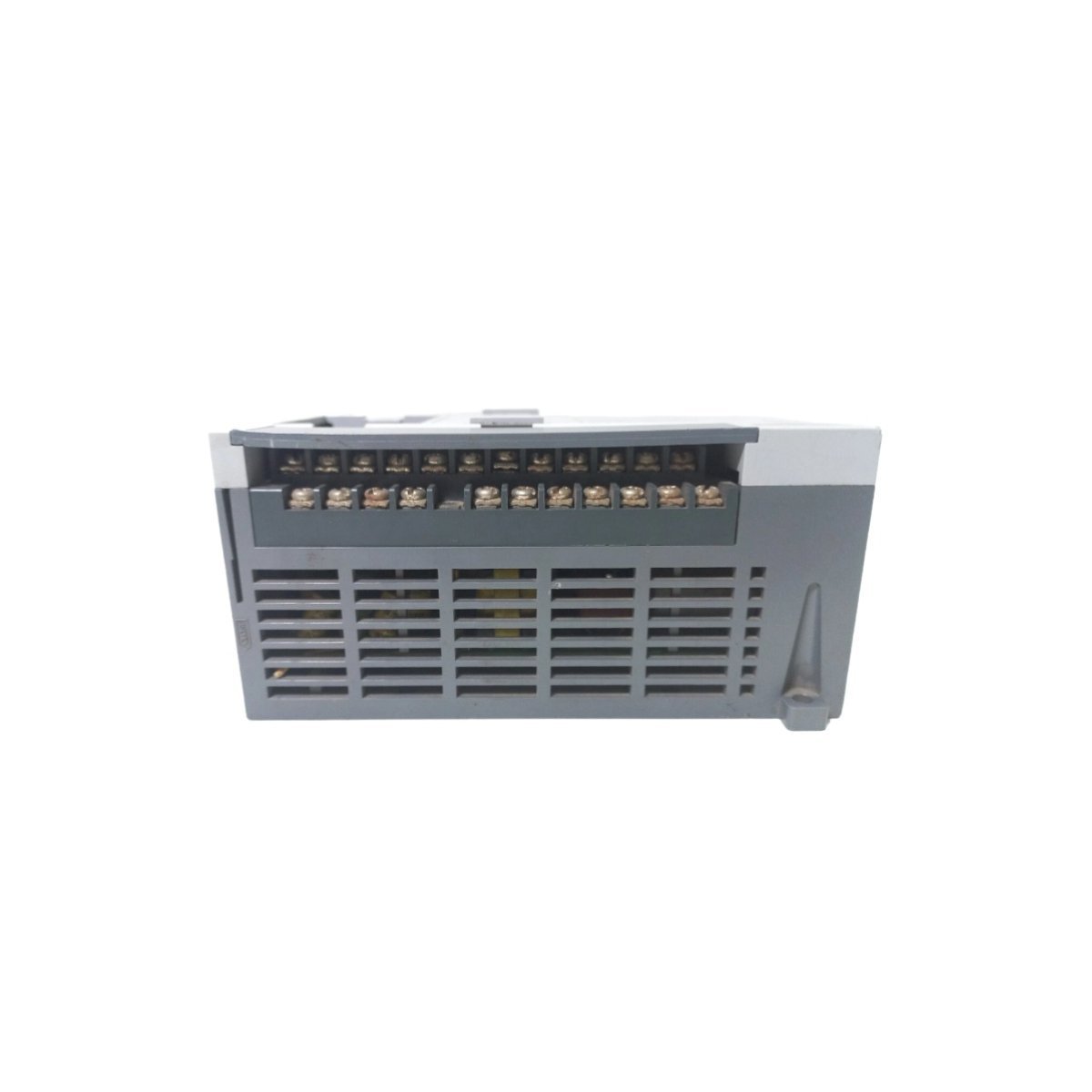

HONEYWELL MLI-DN30E MasterLogic Base Module

The HONEYWELL MLI-DN30E is a high-performance, compact PLC Main Base Unit belonging to the Honeywell MasterLogic programmable logic controller series. Engineered for compact-to-medium industrial control applications, this DIN rail-mountable module integrates logic processing, communication interfaces, and built-in high-density I/O into a single cohesive footprint. It functions as the primary control block in standalone machinery or distributed DCS sub-networks, ensuring deterministic execution of automation logic.

Technical Specifications

Electrical & Operational Characteristics

Discrete Input Matrix

The 18 discrete input channels utilize optical photo-coupler isolation to safeguard the core processor against hazardous field surges and ground loops. The channels are divided into high-speed and standard scanning groups:

• High-Speed Inputs (Channels 00 to 03): Optimized for fast pulse tracking or encoder feedback. Rated at DC 24V / 7mA with an internal input impedance of 3.3 kΩ.
• Standard Inputs (Channels 04 to 17): Configured for proximity switches, pushbuttons, and auxiliary contacts. Rated at DC 24V / 4mA with an input impedance of 5.6 kΩ.

Relays & Insulation Endurance

The 12 electromechanical relay outputs provide robust, dry-contact switching capable of driving interposing relays, contactors, and solenoids directly. The module exhibits industrial-grade dielectric isolation, tested to withstand an overvoltage of AC 560 Vrms for 3 complete electrical cycles. This high isolation barrier ensures dependable performance even in unconditioned control environments up to an operational altitude of 2,000 meters.

Frequently Asked Questions

Q: Does the MLI-DN30E support hot-swapping if an internal relay fails?

A: No. Because the MLI-DN30E is a foundational Base Module containing the core processor and physical I/O terminations on one board, power must be disconnected from the controller rack before removing or servicing the unit to prevent hardware corruption.

Q: Can the 18 inputs be wired in both Sink and Source configurations?

A: Yes. The input circuitry utilizes bi-directional photo-couplers, enabling the inputs to be grouped and wired as either sink (common positive) or source (common negative) depending on the configuration of your external field sensors.

Q: How is the less than 5% power ripple rate enforced on this module?

A: The module relies on a well-filtered, regulated industrial power supply. Exceeding a 5% ripple rate can inject electrical noise into the high-speed input channels (00-03), leading to false pulse counts or timing errors in the logic engine.

Field Installation Guidelines

• DIN Rail Attachment: Snap the module securely onto a standard 35mm DIN rail. Ensure the top and bottom chassis grounding clips firmly engage with the rail backplate to establish a continuous low-impedance ground path.
• Terminal Wiring Safety: Wire high-current relay outputs separately from low-voltage discrete input paths. Use distinct wiring conduits to avoid electromagnetic cross-talk and noise injection on the high-speed input lines.
• Thermal Boundaries: Maintain a minimum clearance of 50mm above and below the module casing. This space allows natural convection currents to flow freely through the ventilation slots, keeping internal temperatures within stable operating margins.
• Firmware Synchronization: Ensure that your MasterLogic programming software matches the runtime firmware revision embedded within the MLI-DN30E base unit before initiating a cold project download.
