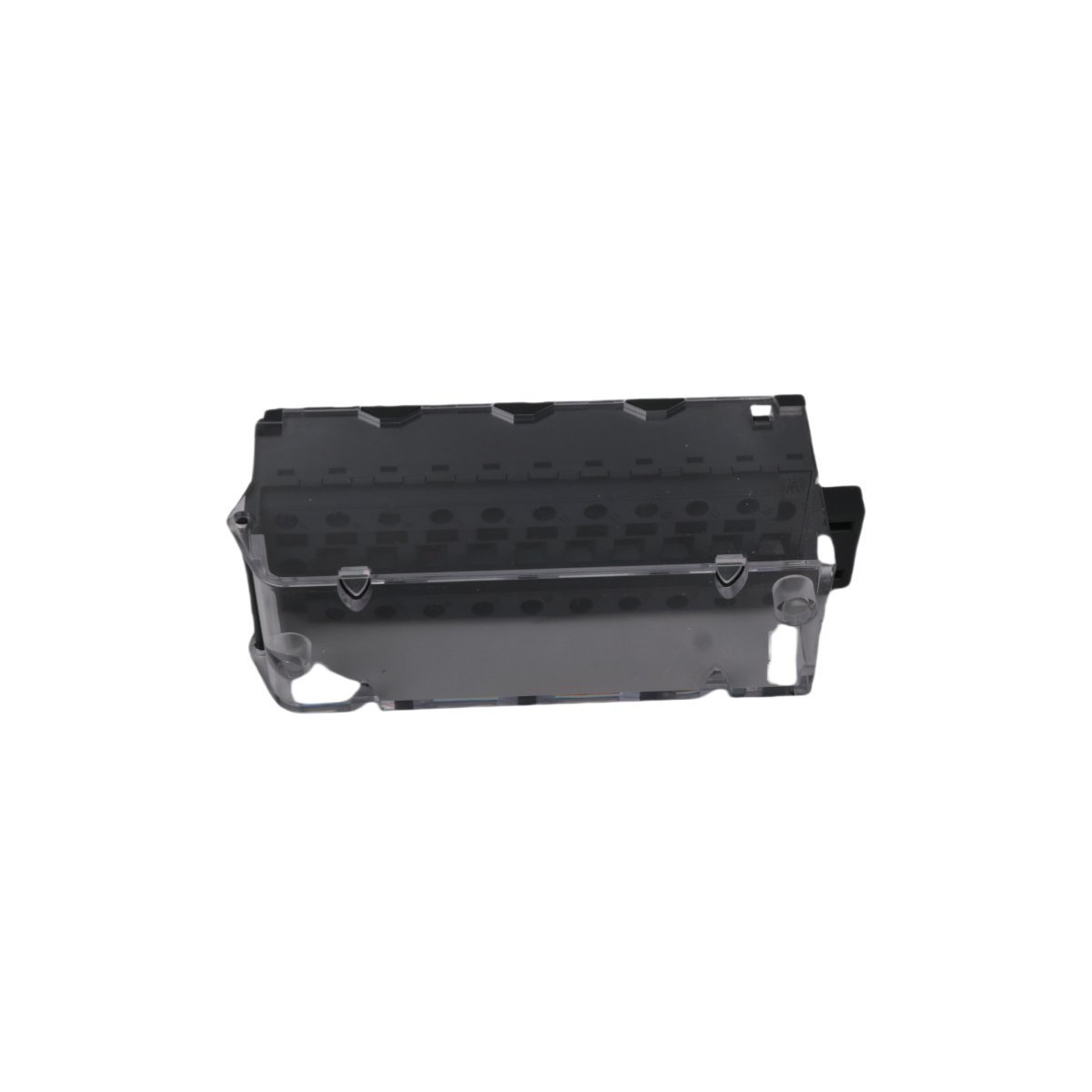

Schneider Electric BMXFTB2000 Modicon X80 Terminal Block

Product Overview

The Schneider Electric BMXFTB2000 serves as a vital connection peripheral within the Modicon X80 automation platform. This 20-point removable terminal block provides a secure, physical interface between field wiring and various I/O modules. Because engineers designed it for high-density applications, it simplifies the wiring process for modules like the BMXAMI0410 and BMXAMM0600. Its pluggable nature significantly enhances maintenance efficiency, as technicians can replace I/O modules without disconnecting individual field wires.

Technical Specifications

• Manufacturer: Schneider Electric
• Model Number: BMXFTB2000
• Module Type: 20-way Removable Terminal Block
• Connection Technology: Cage Clamp (Screw terminals)
• Product Compatibility: Modicon X80 (BMXAMI0410, BMXAMO0210, BMXAMM0600, etc.)
• Weight: 0.1 kg
• Dimensions: 3.2 cm x 9.5 cm x 4.4 cm

Engineering and Durability

The BMXFTB2000 utilizes reliable cage clamp technology, which creates a vibration-resistant connection point for critical industrial signals. Consequently, this design prevents accidental wire loosening in high-motion environments, such as manufacturing plants or energy facilities. To further protect the electrical contacts, Schneider includes a dedicated protective cover with each unit. This cover effectively shields the terminal points from dust and accidental contact while maintaining a compact footprint within the PLC cabinet.

Installation and Maintenance Efficiency

One of the primary advantages of the BMXFTB2000 is its removable design. During a system upgrade or module replacement, maintenance teams simply unplug the entire terminal block from the front of the I/O module. This action preserves the integrity of the original field wiring and eliminates the risk of rewiring errors. Furthermore, the standardized 20-point layout allows system integrators to maintain consistency across various types of Modicon X80 modules, which ultimately reduces the complexity of panel builds and speeds up commissioning times.
