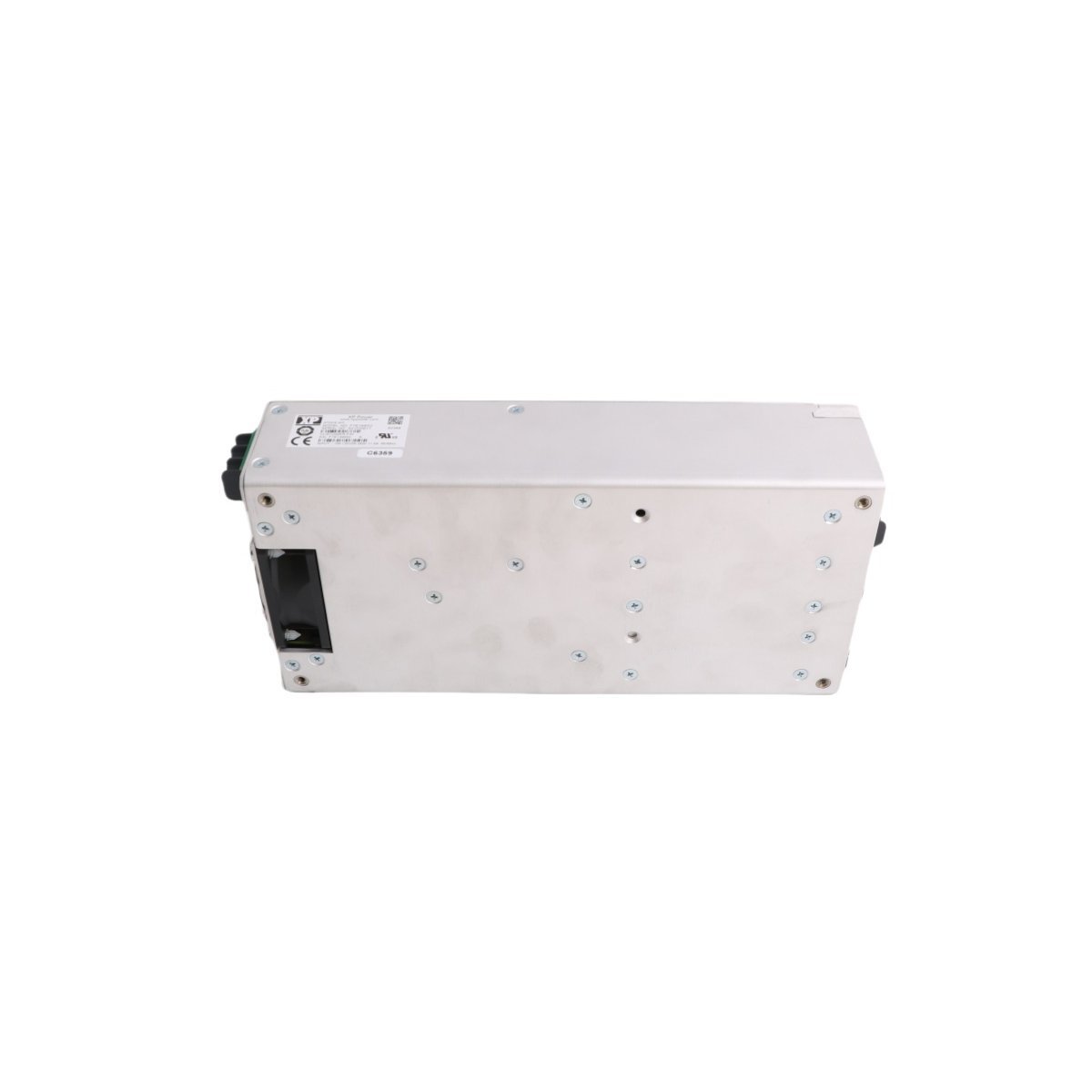

Siemens Robicon A1A0100275 High-Integrity Medium Frequency Converter

The Siemens Robicon A1A0100275 is a high-performance Medium Frequency Converter designed for Perfect Harmony drive systems. This robust power module provides precise frequency regulation and advanced thermal management, ensuring high-efficiency operation for demanding medium-voltage industrial motor applications.

Request a Quote

Technical Product Overview

The Siemens Robicon A1A0100275 represents a specialized Medium Frequency Converter component designed for precision power modulation in demanding industrial applications. This module functions as a critical part of the Robicon Perfect Harmony drive systems and high-power converter assemblies. By utilizing advanced power electronics, the A1A0100275 ensures stable frequency conversion and voltage regulation, which are essential for maintaining the efficiency and torque characteristics of specialized industrial motors. Its robust design allows it to withstand the thermal and electrical stresses typical of heavy-duty power conversion cycles.

Operational Characteristics and Performance

The A1A0100275 facilitates smooth power transitions through its high-speed switching capabilities. Because it operates within a medium-frequency range, it significantly reduces the size and weight of associated magnetic components while improving the overall response time of the control loop. The module incorporates high-grade semiconductor technology that minimizes switching losses, thereby enhancing the energy efficiency of the entire drive system. Furthermore, the integrated heat-sync architecture ensures that the module maintains optimal operating temperatures even under high-load conditions. Proactive diagnostics built into the converter circuitry allow the system to detect overcurrent or overvoltage events, triggering protective measures before internal components suffer damage.

Key Technical Specifications

  • Manufacturer: Siemens / Robicon
  • Model Number: A1A0100275
  • Product Type: Medium Frequency Converter Module
  • Application Compatibility: Robicon Perfect Harmony Series / Medium Voltage Drives
  • Cooling Method: Forced air or liquid cooling (application specific)
  • Input/Output Configuration: High-frequency switching stage
  • Safety Standards: Compliant with international industrial power electronics regulations
  • Build Quality: Industrial-grade PCB with high-current trace reinforcement
  • Diagnostic Interface: Integrated feedback sensors for voltage and thermal monitoring

Strategic Industrial Applications

Engineering teams utilize the A1A0100275 in complex power distribution and motor control architectures. Consequently, it is an essential component in the following sectors:

  • Medium Voltage Drive Systems: Acts as a core power stage in variable frequency drives (VFDs) for large-scale industrial motors.
  • Induction Heating: Provides the necessary frequency conversion for high-precision thermal processing in metal manufacturing.
  • Renewable Energy Grid Interfacing: Assists in the synchronization and conversion of power from specialized turbine systems to the industrial grid.
  • Marine Propulsion: Manages the power modulation for high-capacity electric motors in shipping and offshore vessels.
