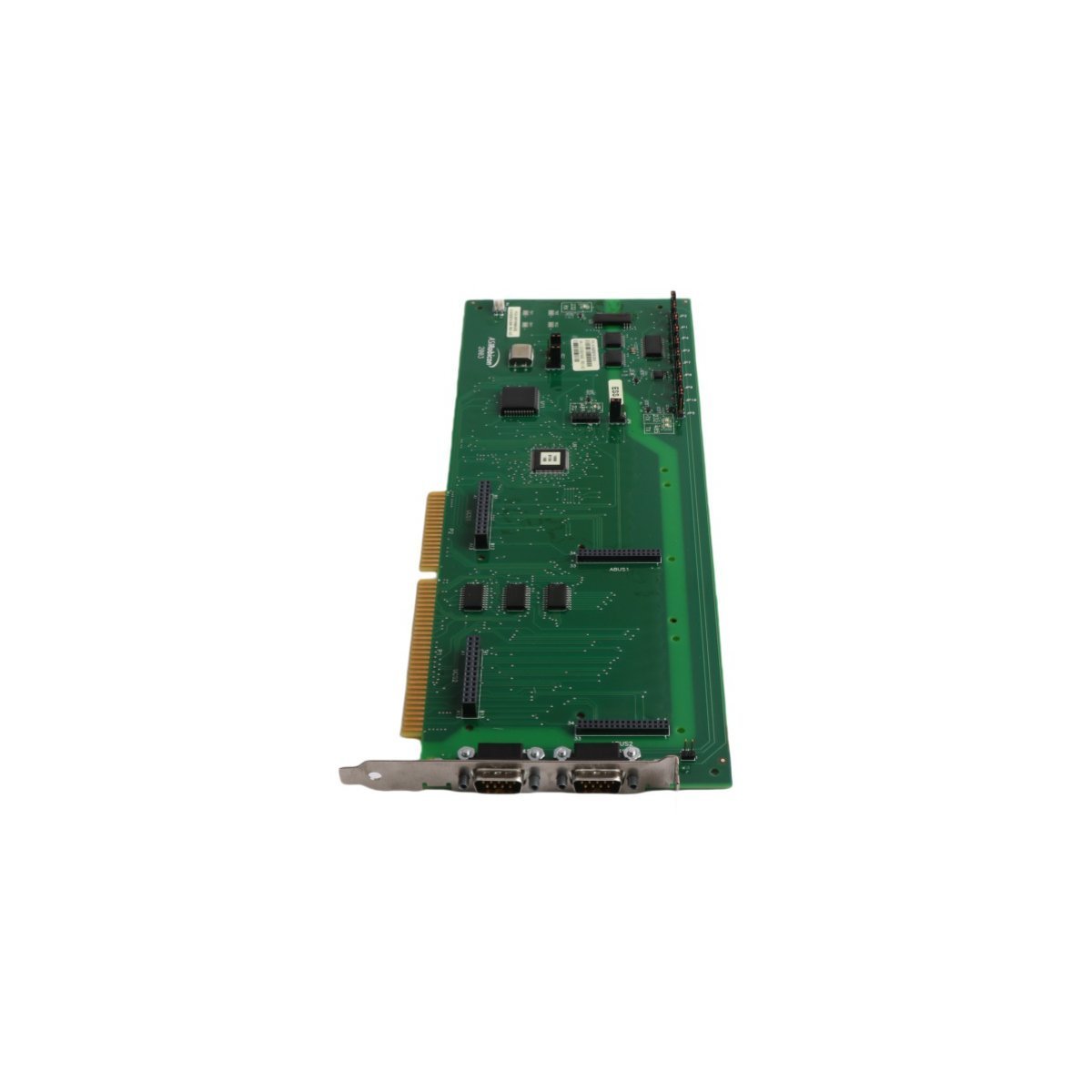

The Siemens Robicon A1A363818.00M is a specialized Circuit Control Board designed for Perfect Harmony Medium Voltage VFD power cells. Featuring fiber-optic communication and advanced IGBT gate monitoring, this board delivers high-precision PWM control and robust isolation for critical high-power industrial motor applications.
The Siemens Robicon A1A363818.00M operates as a core Circuit Control Board specifically engineered for the Perfect Harmony series of Medium Voltage (MV) Variable Frequency Drives. This module functions as the localized intelligence for individual power cells, managing the precise switching of power semiconductors to achieve clean, high-voltage sine wave outputs. Because the Robicon architecture utilizes a cascaded H-bridge design, the A1A363818.00M ensures that each cell operates in perfect synchronization with the master controller. By regulating internal cell dynamics and processing fiber-optic commands, this board effectively maintains the high power quality and low harmonic distortion for which the Perfect Harmony series is known.
The A1A363818.00M manages high-speed pulse-width modulation (PWM) signals by utilizing integrated logic circuits that react to real-time process changes. To facilitate absolute electrical safety in medium voltage environments, the board employs fiber-optic interfaces for all data communication with the main control rack. This design effectively prevents high-voltage transients from reaching the sensitive low-voltage control electronics. Furthermore, the unit features specialized gate-driving circuitry that monitors the health of the IGBTs (Insulated Gate Bipolar Transistors) within the power cell.
To further enhance system reliability, the board incorporates advanced fault-detection mechanisms, including overvoltage, overcurrent, and over-temperature monitoring. In addition to its switching functions, the A1A363818.00M reports localized diagnostic data back to the central processor, enabling the “cell bypass” feature if a malfunction occurs. Consequently, the drive can continue operating at a slightly reduced capacity rather than suffering a total system trip. As a result, the A1A363818.00M serves as a critical component for maintaining continuous uptime in massive industrial motor applications, such as those found in water treatment, oil and gas pipelines, and mining ventilation systems.
| Parameter | Specification |
|---|---|
| Model | 2711P-T10C22D9P |
| Brand | Allen-Bradley / Rockwell Automation |
| Origin | USA |
| Weight | 0.9 kg (Net) / 2.3 kg (Packaged) |
| Dimensions | 3.5 x 13 x 14.5 cm (Chassis depth/profile variation) |
| Operating Temp | 0 to +55 deg C |
| Power Input | 24 VDC (PELV/SELV compliant) |
| Power Consumption | 50 W maximum |
| Display Type | 10.4-inch Color TFT (800 x 600 SVGA) |
| Memory | 512 MB RAM / 80 MB Non-volatile user storage |
| Communication Ports | Dual 10/100 Base-T Ethernet (DLR), USB ports |
| Discontinued Date | June 30, 2016 (Catalog data reference) |
The Emerson DeltaV SIS™ KJ3001X1-BH1 (12P0558X152) is a legacy, high-performance isolated I/O interface card engineered for critical process safety and Distributed Control Systems (DCS). Providing robust electrical isolation to prevent ground loops and voltage spikes, this module features a field circuit rating of 60 VDC at 1 A per channel, a LocalBus power draw of 150 mA at 12 VDC, and a specialized B5 mechanical terminal block keying system to prevent incorrect field installation. Built to withstand punishing industrial conditions, its IP20-rated assembly is certified to ISA-S71.04-1985 Class G3 corrosion resistance standards, ensuring stable, interference-free safety loop communication in harsh, highly corrosive processing environments.
The Emerson EPRO PR6423/010-000 CON021 Eddy Current Signal Converter delivers ultra-precise, non-contact displacement and vibration measurements for critical rotating machinery. Featuring an tip diameter, a rugged stainless steel housing, and advanced internal temperature compensation, it provides reliable, continuous asset protection and seamless DCS integration in harsh, high-pressure industrial environments.
