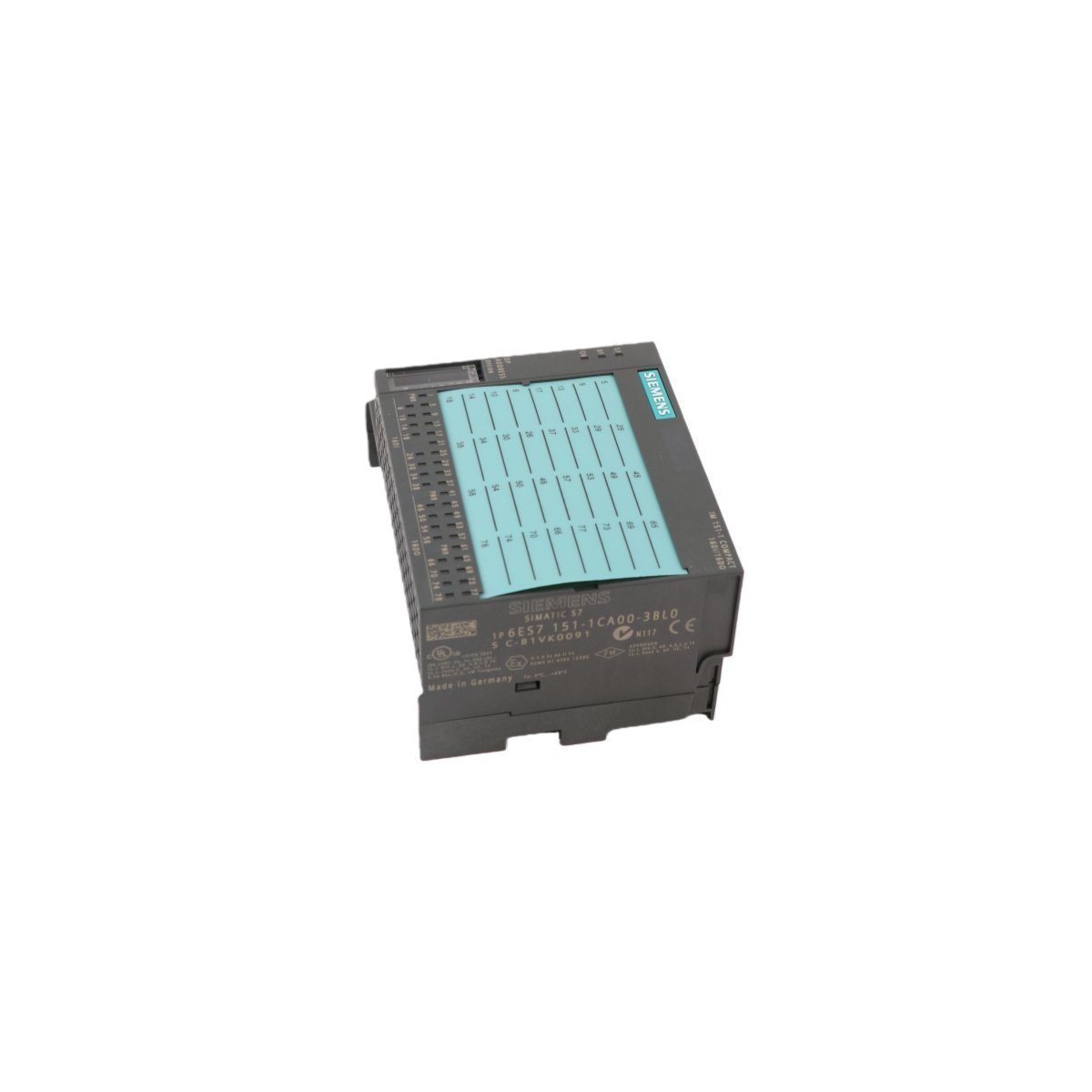

Siemens SIMATIC DP 6ES7151-1CA00-3BL0 ET 200S Compact Module

Functional Overview

The Siemens 6ES7151-1CA00-3BL0 operates as a high-density “Block” I/O interface within the SIMATIC ET 200S distributed peripheral system. This compact module integrates both the interface module and digital I/O points into a single, space-saving housing, allowing it to function as a PROFIBUS DP slave. By consolidating 32 digital input channels into one unit, it actively reduces the hardware footprint in control cabinets while maintaining high-speed communication with the central PLC.

Input Configuration and High-Density Design

This module utilizes a 24V DC sink/source architecture to monitor a large volume of discrete field signals. The high-density design significantly simplifies wiring for complex sensor arrays:

• Digital Inputs: 32 channels rated at 24V DC.
• Logic States: Recognizes signals according to IEC 61131 Type 1 standards.
• Cable Management: Connects via a 40-pin front connector, which facilitates organized and rapid field wiring.
• Address Space: Occupies 4 bytes of input data within the PROFIBUS DP image.

Communication and Network Integration

The 6ES7151-1CA00-3BL0 facilitates seamless data exchange between the field level and the supervisory controller. It supports advanced network features to ensure high system availability:

• Transmission Speed: Supports PROFIBUS DP transfer rates up to 12 Mbit/s with automatic baud rate detection.
• Node Addressing: Allows for manual address setting via integrated rotary switches (address range 1 to 125).
• Protocol Support: Operates as a standard DPV1 slave, enabling both cyclic and acyclic data exchange for diagnostics.
• Isolation: Provides electrical isolation between the PROFIBUS interface and the internal electronic components to prevent ground loops.

Diagnostics and Operational Reliability

Siemens incorporates multiple status indicators to streamline troubleshooting and maintenance. The module actively monitors its own health and the status of the connected network:

• SF (System Fault): Illuminates red to signal internal hardware failures or configuration mismatches.
• BF (Bus Fault): Indicates communication errors or physical link issues on the PROFIBUS line.
• ON LED: Confirms the presence of 24V DC electronic power supply.
• Channel Status: 32 individual green LEDs provide immediate visual confirmation of the logic state for every input.

Technical Specifications

• Supply Voltage: 24 V DC (Reverse polarity protected)
• Current Consumption: Maximum 70 mA from the backplane bus
• Input Delay: Typically 3 ms for signal stabilization
• Dimensions: 120 mm (W) x 81 mm (H) x 58 mm (D)
• Operating Temperature: 0 °C to 60 °C (Horizontal installation)
• Protection Rating: IP20 for cabinet-mounted applications
• Certifications: CE, UL, CSA, and C-Tick
