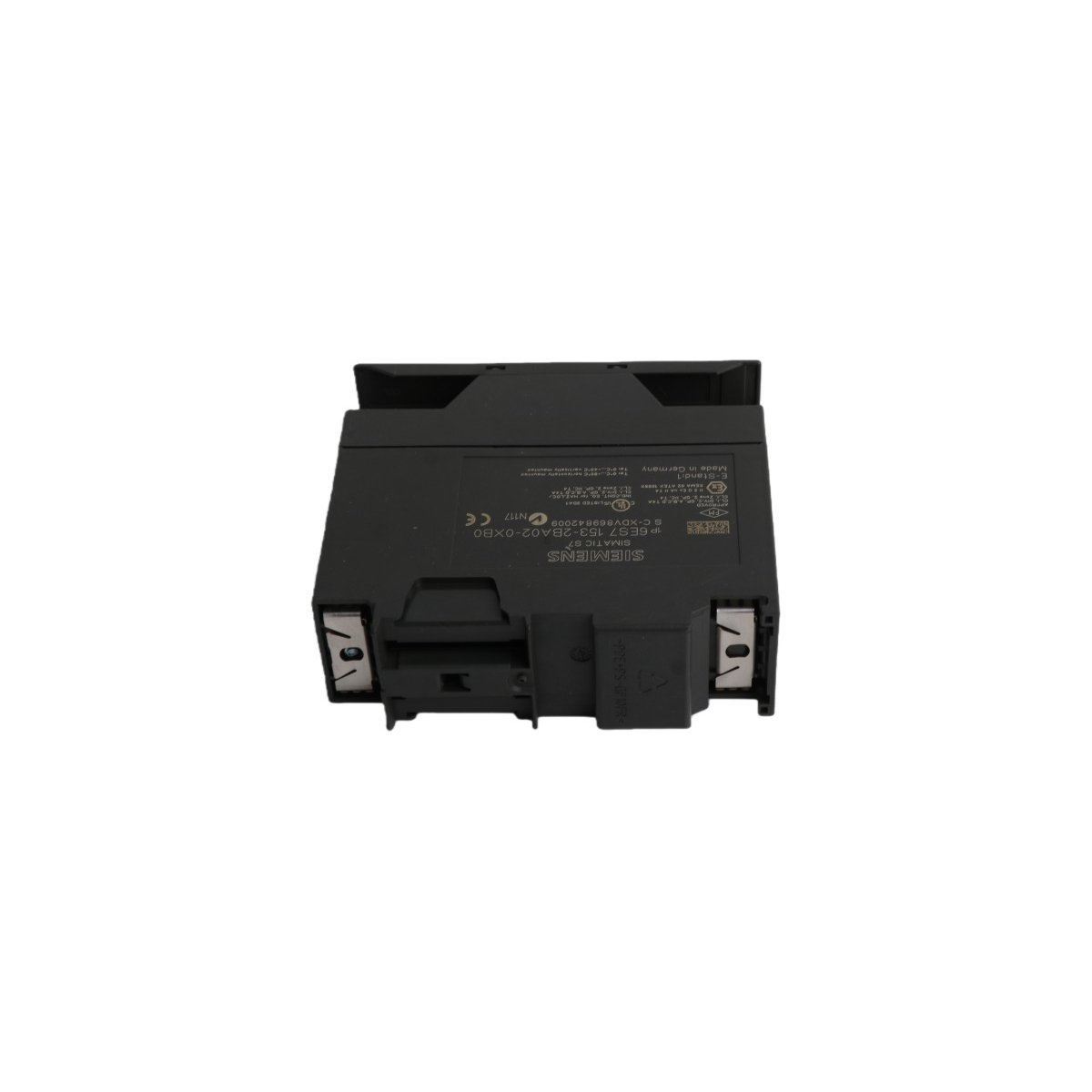

Siemens SIMATIC DP ET 200M 6ES7153-2BA02-0XB0 High Feature Interface Module

Product Overview

The Siemens 6ES7153-2BA02-0XB0 functions as a High Feature (HF) interface module for the ET 200M distributed I/O station. This specific module links the PROFIBUS DP fieldbus to the internal S7-300 backplane bus, allowing a central PLC to manage remote signals efficiently. Because it belongs to the “High Feature” category, it supports advanced system functions that standard modules cannot execute. Engineers typically deploy this interface in environments where high availability and precision timing remain critical for process success.

Advanced Technical Capabilities

This module powers extensive hardware configurations by supporting up to 12 SIMATIC S7-300 modules on a single rack. It actively manages isochronous mode, which synchronizes the bus cycle with the PLC program execution to eliminate jitter in high-speed applications. Furthermore, the 6ES7153-2BA02-0XB0 provides comprehensive time-stamping for digital input signals with millisecond precision. This feature allows operators to reconstruct the exact sequence of events during a system fault, significantly reducing troubleshooting time.

System Redundancy and Reliability

The 6ES7153-2BA02-0XB0 excels in high-availability architectures through its full support for PROFIBUS DP redundancy. When technicians install two of these modules on an active backplane bus, the system gains the ability to switch control seamlessly if one communication path fails. Moreover, the module supports the “Hot Swapping” (Removal and Insertion under Power) feature. This capability enables maintenance teams to replace I/O modules without stopping the entire process, which directly protects the facility against costly unscheduled downtime.

Technical Specifications

• Manufacturer: Siemens
• Order Number: 6ES7153-2BA02-0XB0
• Product Series: SIMATIC DP, ET 200M
• Module Type: Interface Module (IM 153-2 High Feature)
• Transmission Rate: Up to 12 Mbit/s (Automatic detection)
• I/O Capacity: Supports up to 12 modules per station
• Protocols: PROFIBUS DP V1.0, HART (Secondary variables)
• Special Functions: Redundancy, Time-stamping, Isochronous mode
• Power Consumption: 24V DC nominal (Typical 5.5W)
• Weight: 0.95 kg (Shipping weight)
• Dimensions: 40 mm x 125 mm x 117 mm (Standard S7-300 form factor)

Industrial Process Integration

In addition to standard digital and analog signals, this interface module manages extended data for HART-compatible field devices. It successfully processes 64-channel high-density modules, which allows for extremely compact control cabinet designs. By implementing “slave initiative” functionality, the module also optimizes communication with Drive ES and Switch ES systems. Consequently, the 6ES7153-2BA02-0XB0 represents a versatile solution for chemical processing, power generation, and large-scale manufacturing where data density and system uptime are paramount.
