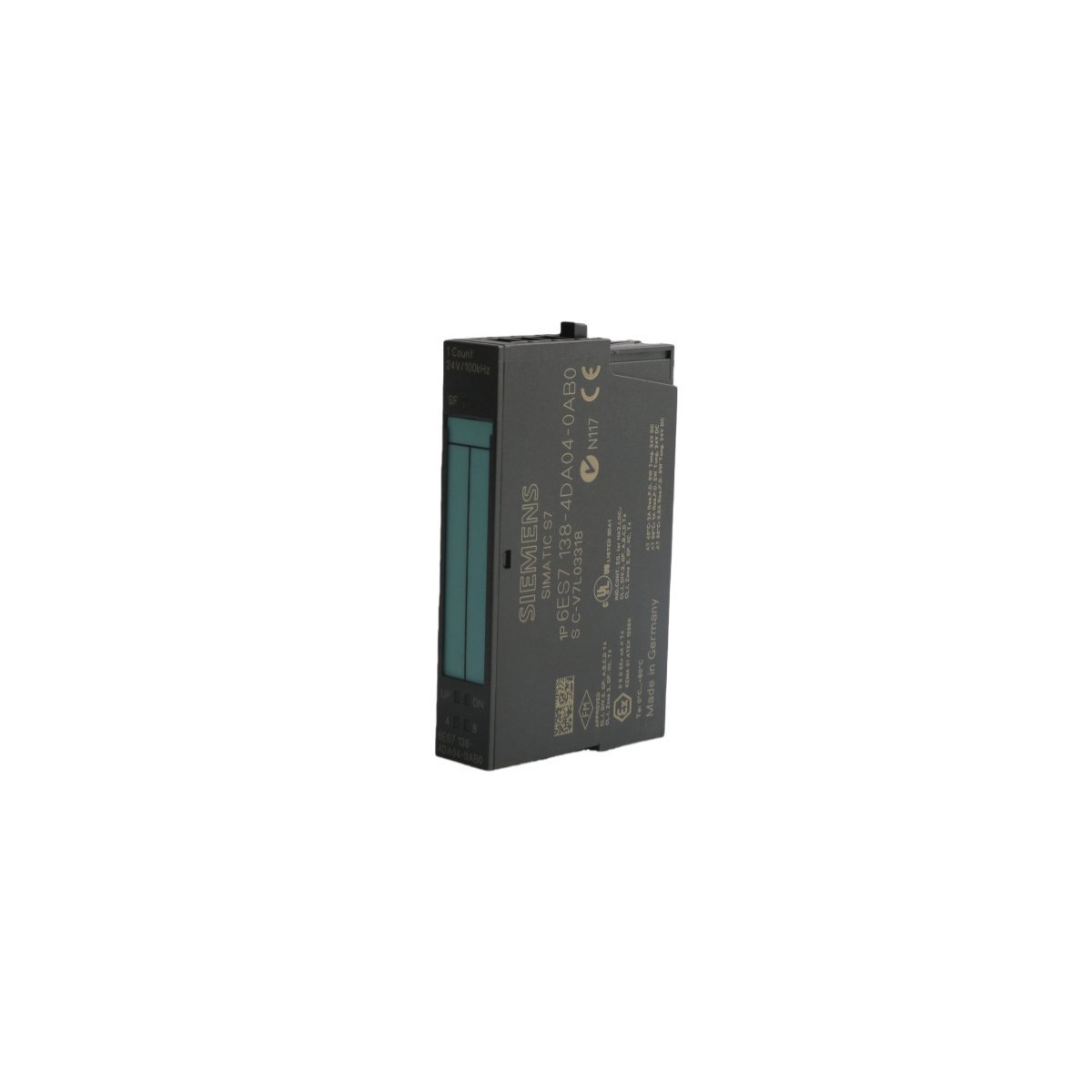

The Siemens 6ES7138-4DA04-0AB0 is a 100kHz counter module for the SIMATIC ET 200S system. It delivers high-speed 24V pulse counting, frequency measurement, and speed monitoring functions with isochronous synchronization for precise industrial automation.
The Siemens 6ES7138-4DA04-0AB0 serves as a high-precision counting component within the modular SIMATIC ET 200S peripheral system. This 1Count24V/100kHz electronics module processes 24V pulse signals with extreme accuracy, making it an ideal choice for tasks involving high-frequency data acquisition. Because the module supports frequencies up to 100 kHz, it handles rapid industrial events that standard digital inputs cannot capture. Furthermore, the module integrates multiple operating modes, including single, periodic, and continuous counting, which allows engineers to customize the device behavior based on specific machine requirements.
Beyond simple pulse accumulation, the 6ES7138-4DA04-0AB0 module offers sophisticated measurement capabilities. Operators use this hardware to monitor rotational speeds, calculate signal frequencies, and determine precise period durations. This multi-functional approach significantly enhances machine supervision and process control. Additionally, the module supports isochronous mode, which synchronizes data acquisition with the PROFIBUS cycle. This synchronization ensures that timing remains consistent across the entire automation network, a feature that remains vital for high-speed production lines where timing jitter can impact final product quality.
The compact 15mm design of the 6ES7138-4DA04-0AB0 facilitates space-saving installation in control cabinets. Since the module belongs to the established ET 200S family, it integrates seamlessly into existing PLC architectures via PROFIBUS or PROFINET interface modules. Maintenance personnel value the enhanced diagnostic structure of this version, as it provides detailed status feedback to the master controller. This visibility simplifies the troubleshooting process and minimizes potential downtime. Ultimately, the robust engineering and backward compatibility make this counter module a dependable solution for upgrading legacy systems or implementing new, high-performance automation solutions in automotive, packaging, and material handling industries.
