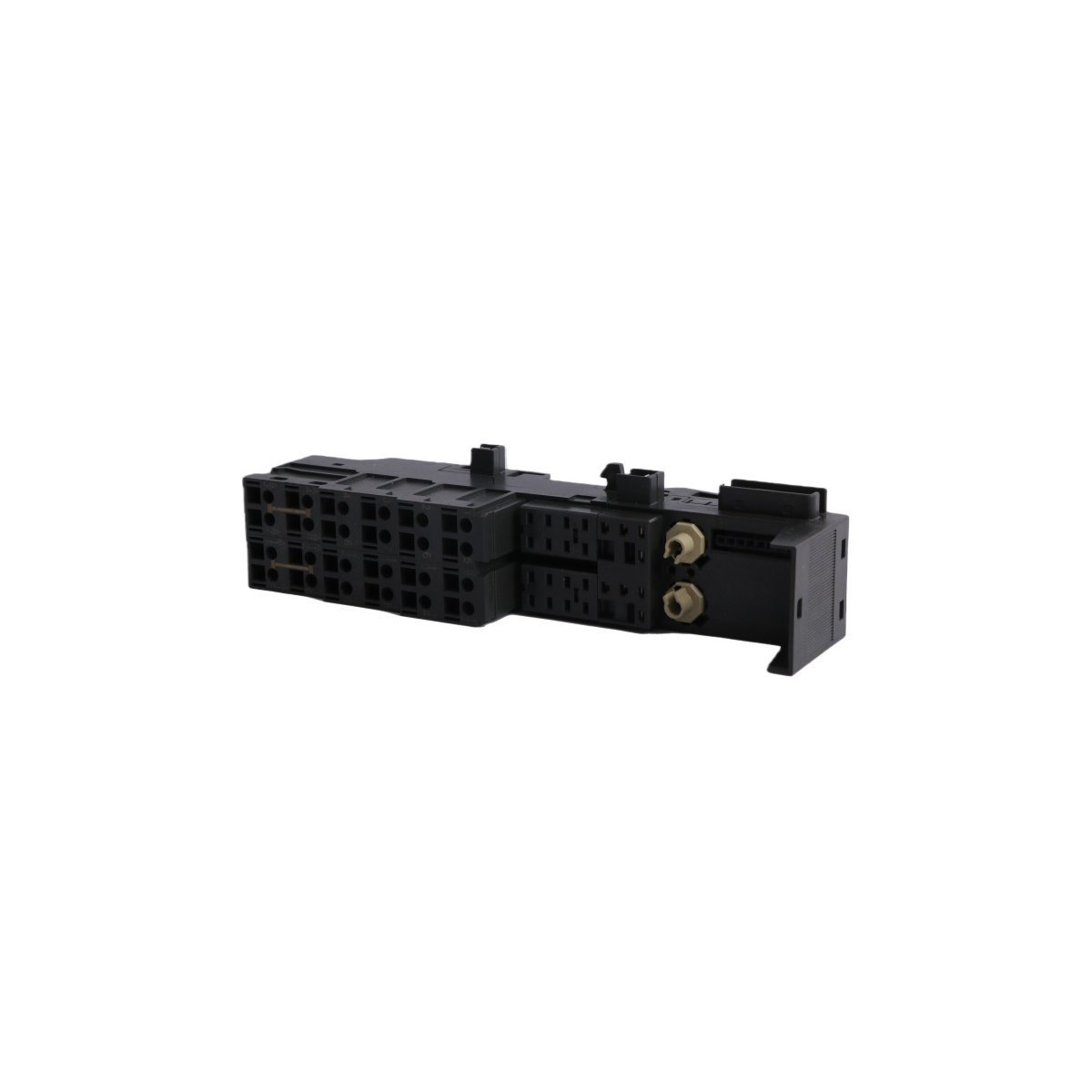

The Siemens 6ES7193-4CA20-0AA0 is a 15mm wide TM-E15S24-01 terminal module featuring 2×4 screw terminals and AUX1 bus access. Designed for the SIMATIC ET 200S system, it ensures secure field wiring and supports hot-swapping for efficient industrial automation maintenance.
The Siemens 6ES7193-4CA20-0AA0 is a dedicated TM-E15S24-01 terminal module engineered for the SIMATIC ET 200S distributed I/O system. This component serves as the physical and electrical interface for 15mm wide electronic modules. It establishes the permanent wiring for the station, allowing users to install or replace electronic modules without disconnecting any field wiring.
By integrating the 6ES7193-4CA20-0AA0 into a control system, engineers can achieve high-density connectivity while maintaining a clean, organized cabinet structure. The module supports a variety of digital and analog electronic modules, ensuring versatile application across diverse automation environments.
Industrial facilities utilize the 6ES7193-4CA20-0AA0 to simplify complex wiring tasks. This terminal module incorporates an internal AUX1 bus, which allows technicians to distribute auxiliary potentials across multiple modules without external jumpers. This design choice significantly reduces the volume of wiring required within the control panel.
The screw-type termination provides a robust connection point, making it particularly suitable for applications subject to mechanical stress or thermal fluctuations. Because the terminal module remains fixed to the DIN rail, maintenance personnel can perform “Hot Swapping” of the electronic modules, ensuring that the system remains online and operational during repairs or upgrades.
| Parameter | Specification |
|---|---|
| Model | 2711P-T10C22D9P |
| Brand | Allen-Bradley / Rockwell Automation |
| Origin | USA |
| Weight | 0.9 kg (Net) / 2.3 kg (Packaged) |
| Dimensions | 3.5 x 13 x 14.5 cm (Chassis depth/profile variation) |
| Operating Temp | 0 to +55 deg C |
| Power Input | 24 VDC (PELV/SELV compliant) |
| Power Consumption | 50 W maximum |
| Display Type | 10.4-inch Color TFT (800 x 600 SVGA) |
| Memory | 512 MB RAM / 80 MB Non-volatile user storage |
| Communication Ports | Dual 10/100 Base-T Ethernet (DLR), USB ports |
| Discontinued Date | June 30, 2016 (Catalog data reference) |
The Emerson Ovation 1P00028G01 Remote Node Transition Panel provides robust signal routing and high-integrity electrical isolation for legacy Ovation Distributed Control Systems (DCS). Operating at 220V AC across an ultra-wide temperature range of -40°C to +85°C, this compact transition panel eliminates field line noise and ensures reliable, deterministic peer-to-peer communication between remote I/O nodes and central controllers in demanding industrial environments.
