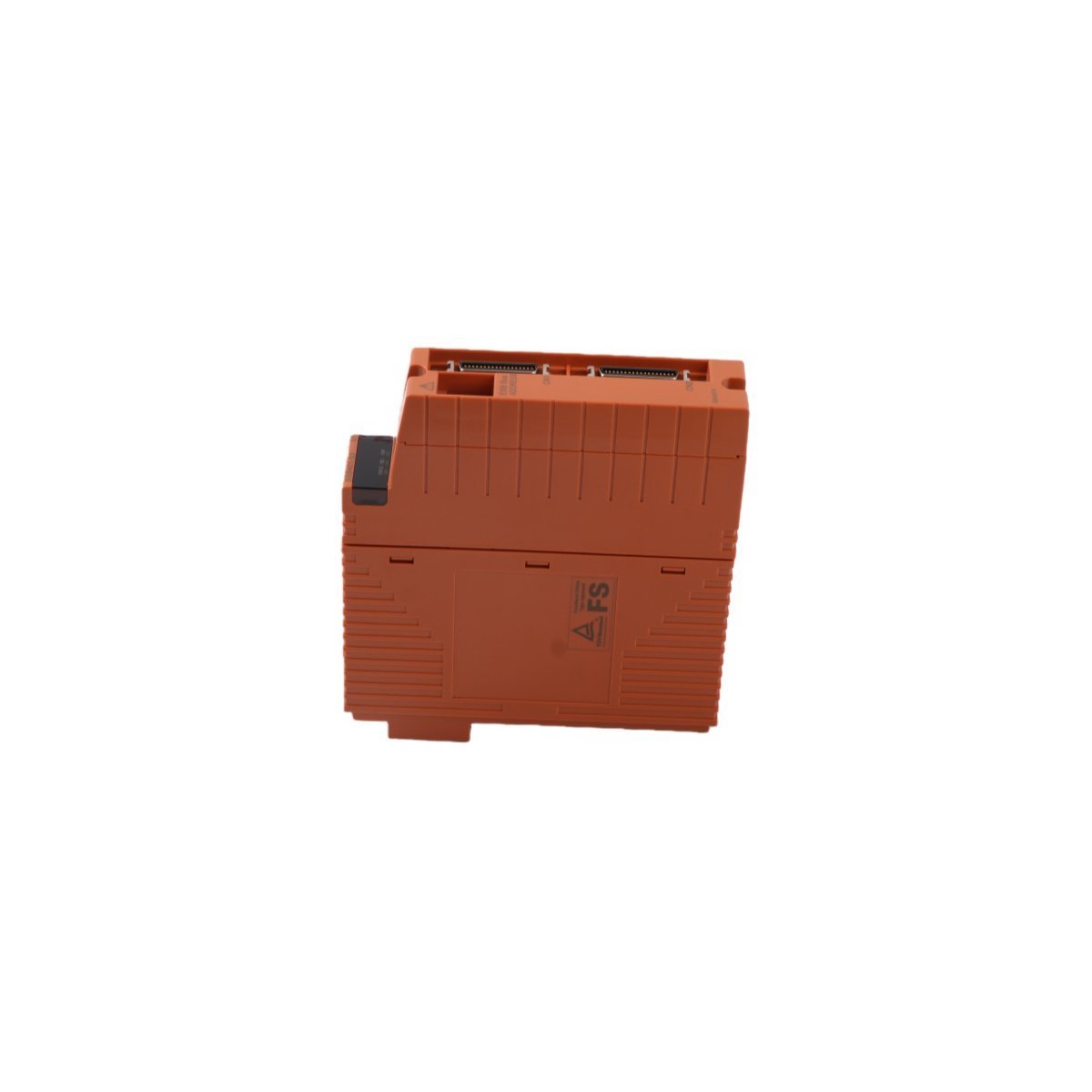

The Yokogawa SSB401-53 S1 is an Optical ESB Bus Repeater Master Module for CENTUM VP systems. It enables long-distance, EMI-resistant communication between controllers and remote I/O nodes using fiber-optic technology, featuring dual-redundancy support and advanced signal monitoring for high-availability industrial networks.
The Yokogawa SSB401-53 S1 serves as the primary optical interface for the Extended Serial Backplane (ESB) bus within the CENTUM VP and CENTUM CS 3000 control systems. This master module enables high-speed, long-distance communication between a Field Control Station (FCS) and remote I/O nodes. By converting electrical bus signals into optical pulses, the SSB401-53 S1 allows the control network to span across large industrial complexes without the distance limitations or electromagnetic interference risks associated with traditional copper cabling. The “S1” hardware revision represents an optimized version of the repeater, engineered for enhanced stability in mission-critical automation environments.
The SSB401-53 S1 optimizes system architecture by facilitating the remote placement of I/O racks up to 500 meters or more from the main controller. Because it utilizes fiber-optic technology, it provides total galvanic isolation between different sections of the plant, effectively preventing ground loops and protecting the FCS from lightning strikes or power surges in the field. The module features dual-redundant optical ports to ensure that communication remains active even if one fiber link suffers damage. Furthermore, the unit continuously monitors the signal strength of the optical link; if the light levels drop below a safe threshold, the module triggers a system alarm to alert maintenance teams before a total communication failure occurs.
System architects specify the SSB401-53 S1 when designing distributed control systems that require high data throughput across expansive physical areas. Consequently, this module is essential in the following sectors:
| Parameter | Specification |
|---|---|
| Model | 2094-BM02-S |
| Brand | Allen-Bradley |
| Origin | USA |
| Weight | 0.9 kg |
| Dimensions | 3.5 x 13 x 14.5 cm |
| Operating Temp | 0 to +50 deg C (Standard Industrial Range) |
| Power Consumption | 650 VDC nominal input / 115 Ohm internal shunt resistor |
| Module Type | Servo Drive (Axis Module) |
| Product Range | ControlLogix / Kinetix 6000 |
| System Classification | PLC Motion Control |
| Continuous Current | 10.3 A (RMS), 14.6 A (Sine Peak) |
| Velocity Loop Bandwidth | 500 Hz |
| Current Loop Frequency | 1300 Hz |
| Efficiency Rating | 98% |
