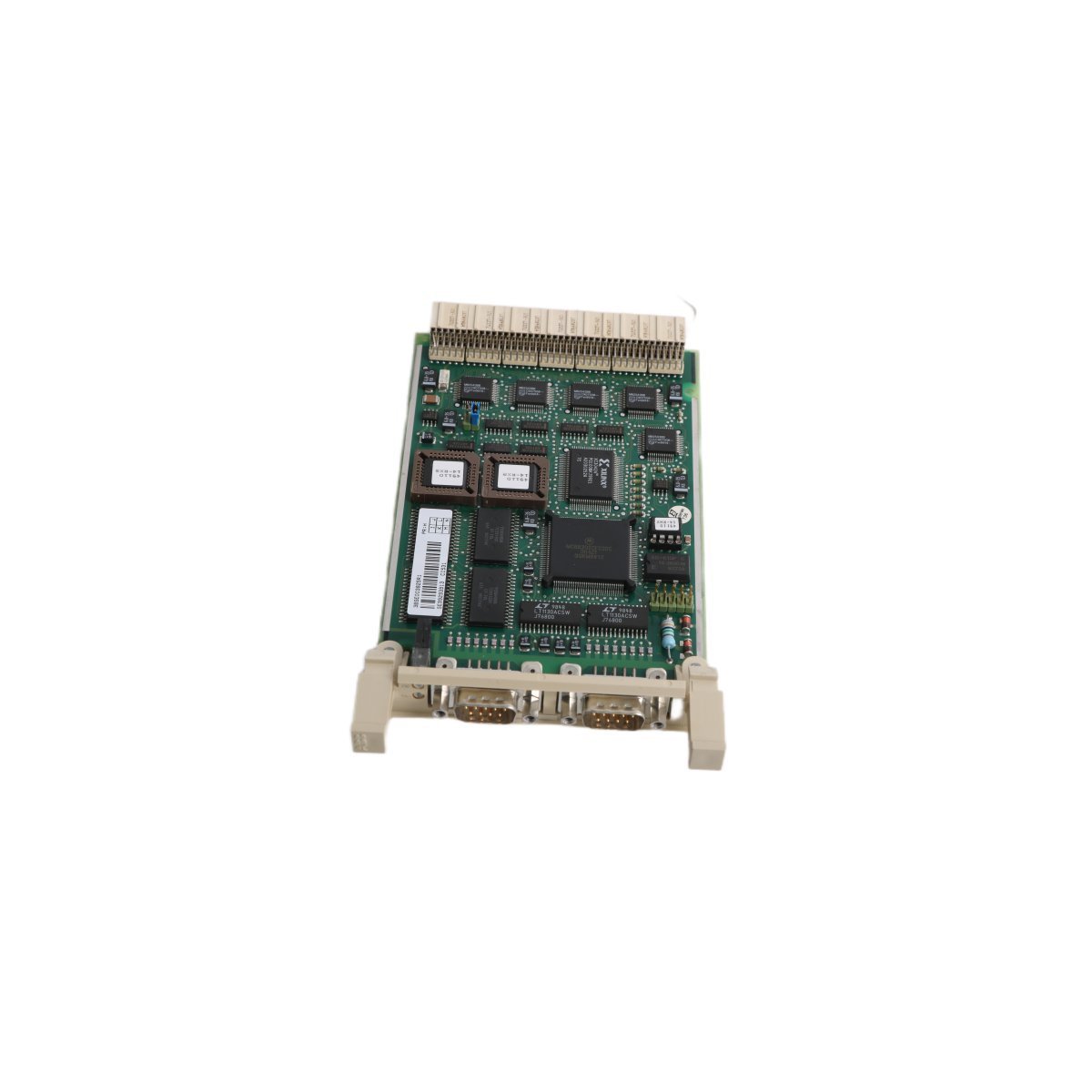

ABB CI531 3BSE003825R1 AC500 Interface Submodule DCS Communication Board

Technical Functionality and Integration

The ABB CI531 3BSE003825R1 serves as a high-performance interface submodule within the AC500 PLC and Distributed Control System (DCS) architectures. This module primarily functions as a bridge for data exchange, facilitating seamless connectivity between the main controller and peripheral devices. By acting as an Ethernet-capable router or communication link, the CI531 ensures that information flows rapidly and accurately across the industrial network. Engineers typically implement this submodule to expand the communication capabilities of their automation racks, allowing the system to handle more complex data structures without compromising processing speed.

Operational Advantages and Design

Beyond simple connectivity, the CI531 3BSE003825R1 incorporates advanced circuitry that stabilizes signal integrity in electrically noisy industrial environments. The module utilizes active diagnostic protocols to monitor the health of the communication link, which enables maintenance teams to pinpoint network faults before they result in significant system downtime. Furthermore, its compact form factor allows for high-density installation within standard PLC racks, maximizing cabinet space while maintaining efficient thermal dissipation. Because this unit originates from ABB’s Swedish manufacturing facilities, it adheres to rigorous international quality standards, ensuring long-term reliability for mission-critical infrastructure.

Key Performance Characteristics

• Network Versatility: Supports multiple communication protocols to integrate various control units and field devices into a unified DCS environment.

• Real-Time Diagnostics: Features onboard monitoring tools that identify potential configuration errors or hardware issues instantly.

• System Compatibility: Designed specifically for the ABB AC500 series, ensuring plug-and-play synchronization with existing PLC hardware and software.

• Industrial Hardening: Constructed to withstand the temperature fluctuations and mechanical vibrations common in factory floor installations.

• Efficiency Optimization: Streamlines data routing tasks, which offloads processing requirements from the primary CPU and improves overall loop response times.

Technical Specifications

• Manufacturer: ABB

• Model Number: CI531

• Part Number: 3BSE003825R1

• Product Series: AC500 / DCS

• Module Category: Interface Submodule

• Communication Service: Ethernet Router / Interface

• Physical Weight: 0.16 kg

• Chassis Dimensions: 2.0 cm x 17.0 cm x 10.1 cm
