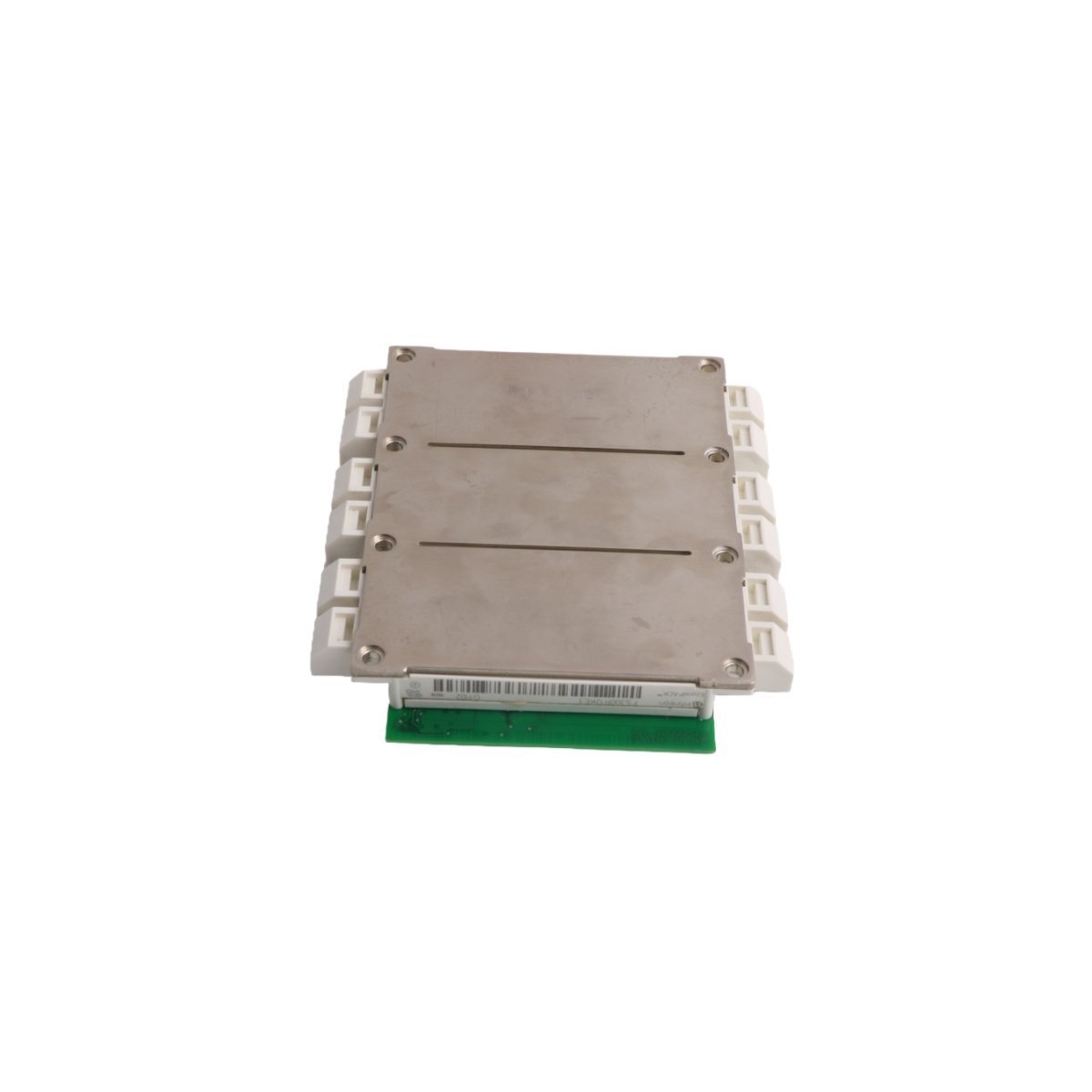

ABB FS300R12KE3/AGDR-71CS Drive Board & IGBT Module Kit

The ABB FS300R12KE3/AGDR-71CS is a high-power phase module kit engineered for the ACS800 (specifically R8i frame size) industrial frequency converter series. This integrated assembly pairs an Infineon EconoPACK+ IGBT module with an ABB gate driver board (AGDR-71CS) to ensure synchronized high-frequency switching, tight thermal regulation, and reliable overcurrent protection in demanding motor drive applications.

Hardware Specifications

Power Architecture & Advanced Thermal Management

The FS300R12KE3/AGDR-71CS assembly forms a complete phase leg for heavy-duty industrial variable speed drives (VSD). The AGDR-71CS gate driver is mounted directly above the low-profile EconoPACK+ IGBT module layout to eliminate parasitic trace inductance, preventing severe voltage overshoots during high $di/dt$ switching sequences.

Modern iterations of this kit implement Thermal Interface Material (TIM) foils—engineered graphite sheets—to replace traditional silicone thermal paste. TIM foils maintain long-term stability under cyclical, high-load thermal profiles. They resist the fluid pump-out and dry-out failures typical of traditional grease interfaces, establishing a highly predictable and durable path for heat rejection into the primary cooling manifold.

Frequently Asked Questions

Q: Can I replace a single module using thermal grease with this TIM foil module in a parallel R8i configuration? A: Yes. ABB drive architectures allow for the mixing of thermal grease and TIM foil-equipped IGBT modules within parallel-connected multi-module configurations, providing flexibility during emergency field replacements.

Q: What is the primary cause of gate driver faults (such as “Short Circuit” or “Earth Fault”) on the AGDR board? A: These faults generally point to a punctured desaturation monitoring circuit on the AGDR board, cross-conduction caused by a degraded physical IGBT gate layer, or localized breakdown of the collector-emitter barrier.

Field Installation & Torque Guidelines

• Heatsink Surface Preparation: Thoroughly clean the aluminum or liquid-cooled copper cold plate before mounting. Remove all traces of oxidized grease or contamination using an approved residue-free solvent.
• Torque Sequence Enforcement: Tighten the IGBT module baseplate screws progressively in a cross-pattern sequence. Adhere strictly to the manufacturer’s specification (typically 3.0 to 6.0 Nm for EconoPACK+ housings) to ensure uniform TIM foil compression without causing mechanical warp.
• Fiber Optic Routing: Inspect the fiber-optic communication cables linking the AGDR-71CS board back to the central RMIO control board. Maintain a minimum bend radius of 25 mm to avoid transmission attenuation or signal degradation.
