SKU: ICSM06A6 FPR3350601R1062

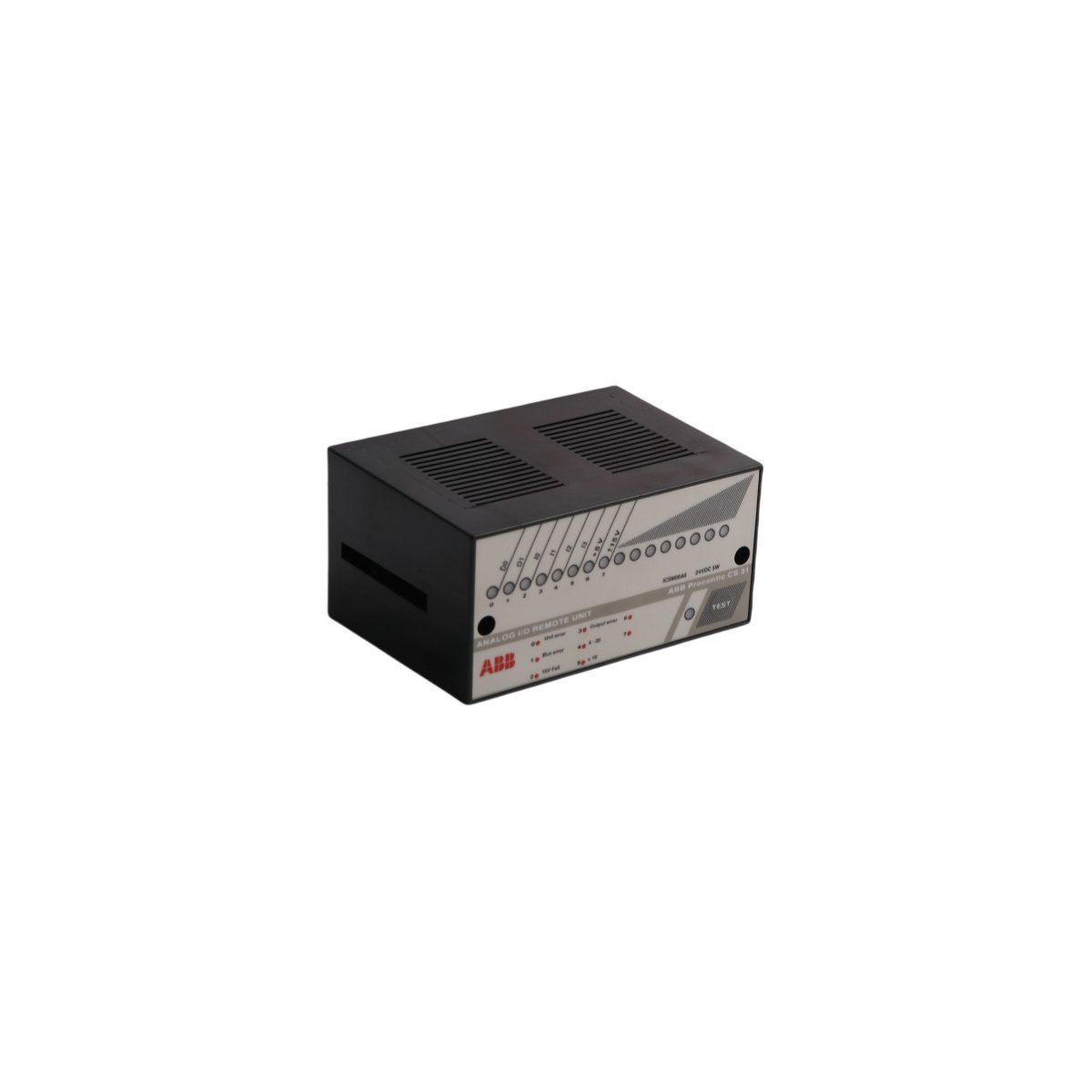

ABB ICSM06A6 FPR3350601R1062 Procontic CS31 Analog I/O Remote Unit

The ABB ICSM06A6 FPR3350601R1062 is a high-performance Analog I/O Remote Unit for Procontic CS31 systems. Featuring 6 inputs and 6 outputs, it supports 12V DC operation and multi-protocol communication (EtherCAT/DeviceNet), providing a Sweden-made, ruggedized solution for distributed industrial automation.

Architectural Overview and Signal Management

The ABB ICSM06A6 FPR3350601R1062 functions as a decentralized Analog I/O Remote Unit within the Procontic CS31 automation framework. This module actively manages the interface between field-level sensors and the primary control station by providing six dedicated analog input and six analog output channels. Because the unit utilizes the CS31 system bus, it facilitates high-speed data transmission over long distances without the need for extensive point-to-point wiring. Consequently, this remote architecture significantly reduces installation costs and simplifies the expansion of distributed control networks.

Power Stability and Communication Versatility

To ensure continuous operation in volatile electrical environments, the ICSM06A6 operates on a stabilized 12V DC power supply with a ±10% tolerance. The module incorporates advanced communication capabilities, actively supporting modern protocols such as DeviceNet and EtherCAT alongside its native CS31 bus interface. This multi-protocol compatibility allows engineers to integrate the unit into diverse industrial ecosystems, ensuring seamless data exchange and high interoperability. Furthermore, the unit’s internal logic filters incoming signals to maintain accuracy even when fluctuating power conditions or electromagnetic interference are present.

Environmental Engineering and Mechanical Design

ABB engineered the ICSM06A6 with a robust IP20-rated enclosure, which effectively protects the internal circuitry from dust and accidental contact. The module thrives in demanding thermal landscapes, maintaining full functionality across a broad temperature range of -25°C to +60°C. Due to its compact footprint and lightweight 0.28 kg design, the unit mounts easily on standard DIN rails within high-density control cabinets. This space-efficient construction, combined with its “Active” status and Swedish manufacturing quality, ensures long-term reliability for mission-critical automation processes.
