ABB UNITROL 5000 HIEE205014R0001 UNC4673A,V1 Measuring Interface Unit

Product Overview

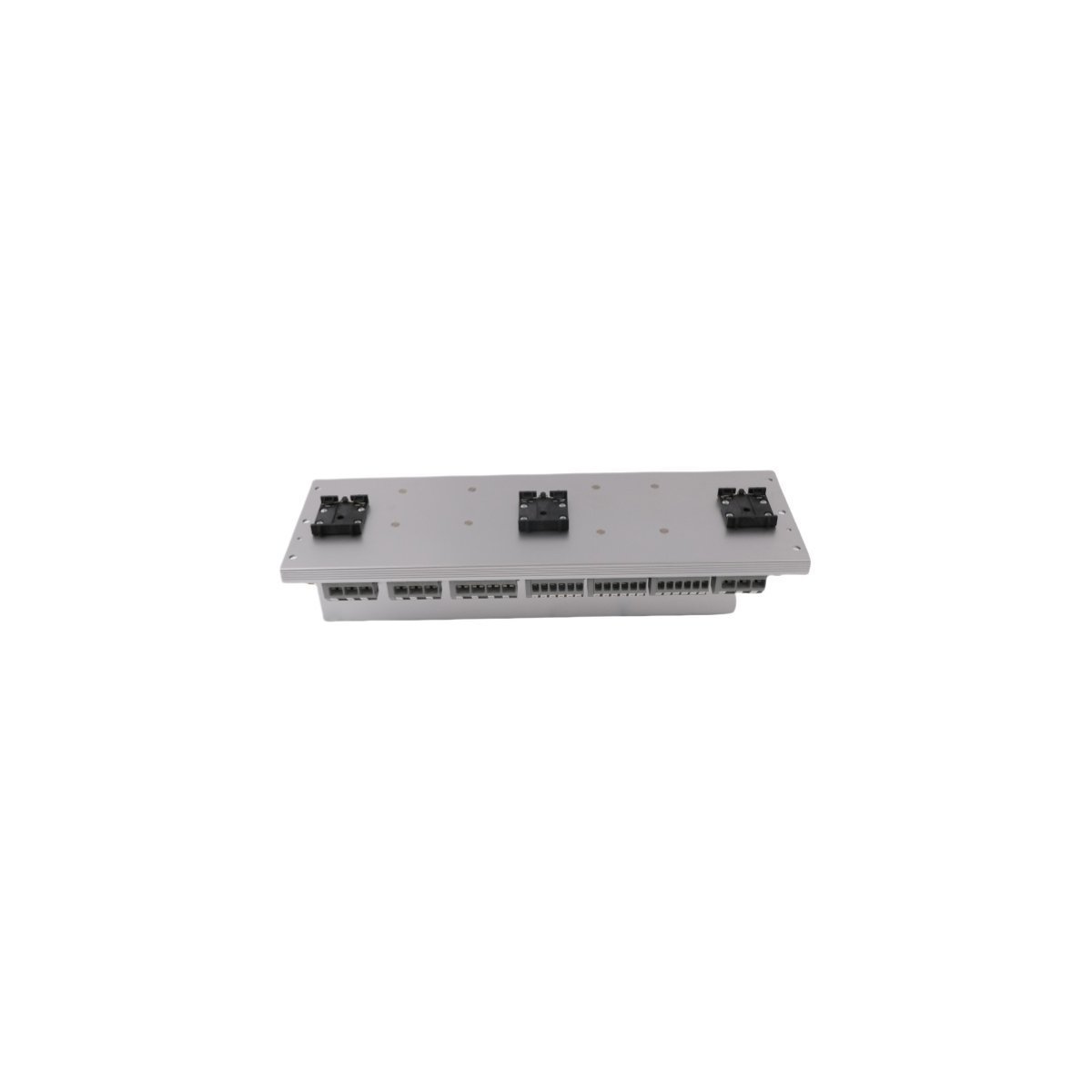

The ABB HIEE205014R0001, commonly recognized by the hardware designation UNC4673A,V1, functions as a high-performance Measuring Interface Unit tailored for the UNITROL 5000 excitation system. This sophisticated circuit board actively facilitates high-precision signal acquisition while streamlining the processing of critical operational data. Consequently, it operates as a vital bridge that links physical primary sensors directly to the digital control architecture. By effectively converting analog field measurements into digitized, actionable data, this module empowers the Distributed Control System (DCS) to sustain consistent voltage regulation and precise generator synchronization.

Technical Functionality

In addition to its core processing capabilities, this interface unit employs advanced high-resolution detection circuits to capture complex electrical parameters across an expansive measurement spectrum. The internal hardware actively filters and digitizes incoming signals; therefore, it ensures that the control system receives purified data even when operating in high-EMI (electromagnetic interference) environments. Furthermore, the module enhances connectivity by supporting sophisticated communication protocols such as Ethernet-based routing and Profinet. These features facilitate rapid data transmission, which subsequently allows for comprehensive, real-time monitoring of overall system health.

Key Technical Specifications

• Manufacturer: ABB
• Series: UNITROL 5000 Excitation Systems
• Hardware Model: UNC4673A,V1
• Part Number: HIEE205014R0001
• Component Category: DCS Measuring Interface / Circuit Board
• Signal Integration: High-speed Ethernet and Profinet compatibility
• Physical Dimensions: 38.1 cm x 12.6 cm x 8.8 cm
• Unit Weight: 3.08 kg
• Environmental Protection: IP65-rated enclosure characteristics
• Country of Origin: Sweden

Operational Benefits

• Optimizes System Accuracy: The unit utilizes precision-engineered components that actively minimize signal drift. As a result, this improvement directly bolsters the long-term reliability of the excitation control loop.
• Withstands Harsh Environments: Because the module incorporates a robust mechanical structure and specialized protective coatings, it successfully resists the thermal and vibrational stresses typical of power generation facilities.
• Promotes Energy Efficiency: The hardware architecture prioritizes minimal power consumption. This design choice effectively reduces the thermal footprint within the control cabinet, thereby extending the operational lifespan of surrounding electronic components.
• Accelerates Installation: Engineers can integrate the UNC4673A,V1 into existing UNITROL 5000 configurations with remarkable speed. Since the board adheres to standard ABB mounting protocols, it significantly reduces technical complexity during setup.
