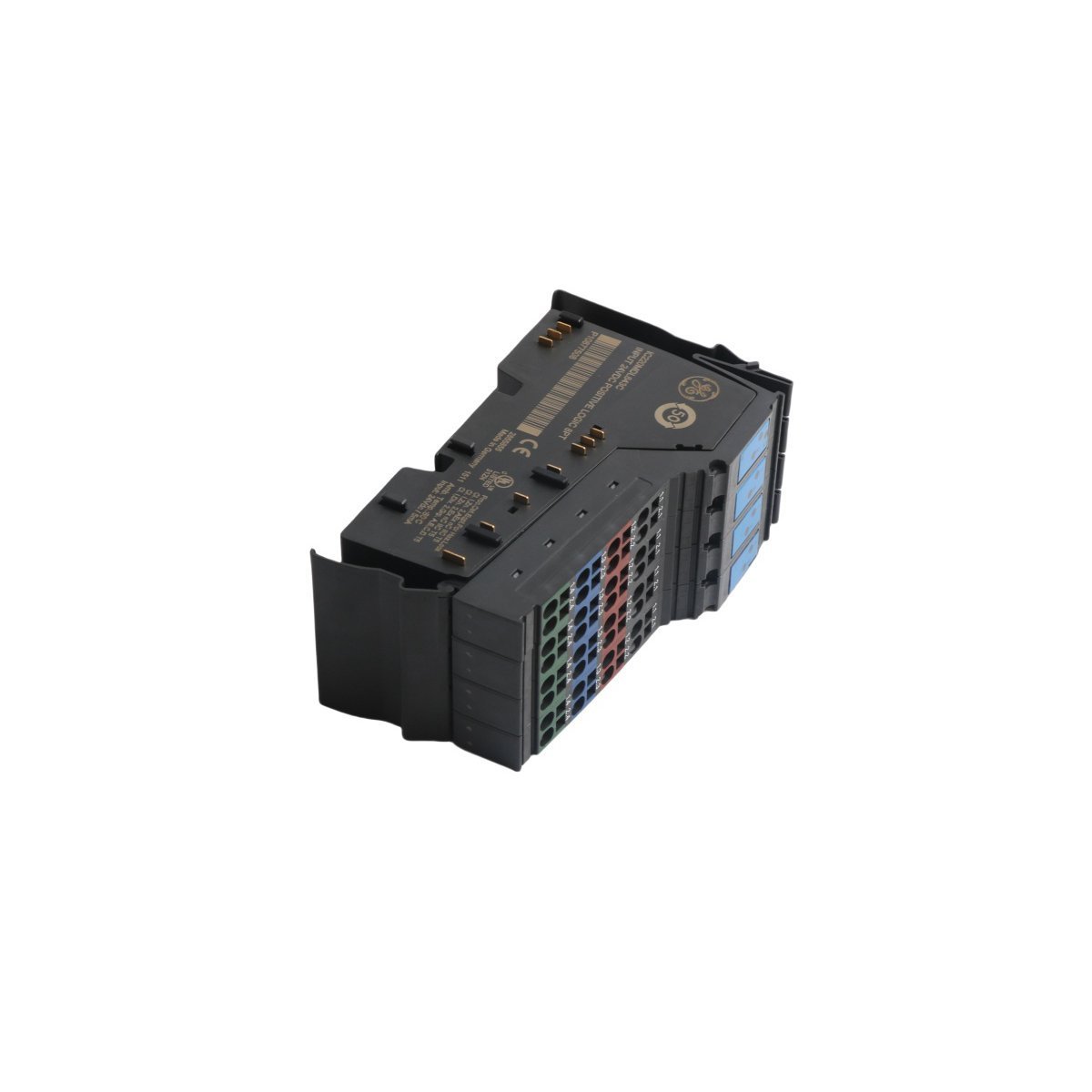

GE Fanuc IC220MDL643 VersaPoint Discrete Input Module

The GE Fanuc IC220MDL643 is a compact 16-channel discrete input module for the VersaPoint I/O system. It features 24 V DC logic, integrated diagnostics, and a space-saving 12.2 mm wide design. This high-density module provides reliable signal acquisition and rapid diagnostic feedback for advanced industrial automation and PLC control applications.

Request a Quote

Technical Functionality

The GE Fanuc IC220MDL643 operates as a high-density 16-channel discrete input module within the VersaPoint I/O family. This module interfaces with 24 V DC field devices, such as limit switches, proximity sensors, and pushbuttons, converting their physical states into digital data for the controller. By utilizing the VersaPoint local bus, the IC220MDL643 transmits signal states with high speed and synchronization. Consequently, it provides the primary data acquisition layer needed for PLC-based automation and complex interlocking logic.

Operational Performance

This input module delivers enhanced reliability through integrated signal filtering and short-circuit protection. Because it performs continuous electronic monitoring of the 24 V DC segment voltage, the module can report power irregularities directly to the master controller. Furthermore, the IC220MDL643 facilitates rapid diagnostics via front-panel LEDs, which provide visual confirmation of each individual channel’s status (On/Off) and the overall health of the local bus. Its modular “slice” design allows for hot-swappable maintenance in specific backplane configurations, significantly reducing potential system downtime during hardware upgrades.

Key Technical Characteristics

  • 16 Independent Channels: Manages up to 16 discrete inputs in a single compact 12.2 mm wide module.
  • 24 V DC Logic: Optimized for standard industrial sensors with a nominal input voltage of 24 V DC.
  • Fast Response Time: Features a typical filter time of 3 ms, ensuring rapid detection of state changes.
  • Integrated Diagnostics: Monitors segment power and local bus communication to provide real-time error reporting.
  • Spring-Clamp Terminals: Utilizes the VersaPoint terminal base system for secure, vibration-resistant field wiring without specialized tools.
  • Electronic Keying: Prevents the insertion of incorrect module types into the terminal base during maintenance.

Primary Industrial Applications

  • Manufacturing Assembly: Tracking the position of pneumatic cylinders and workpieces on high-speed conveyors.
  • Packaging Machinery: Interfacing with photo-eye sensors and safety interlocks for automated wrapping systems.
  • Material Handling: Monitoring the status of bin levels and sorter gate positions in logistics centers.
  • General Automation: Providing discrete feedback for pump run-status and valve limit switches in utility skids.

Technical Specifications

  • Manufacturer: GE Fanuc
  • Model Number: IC220MDL643
  • Input Type: Discrete / Digital Input
  • Number of Inputs: 16
  • Nominal Voltage: 24 V DC
  • Current Consumption: 90 mA (from local bus)
  • Operating Temperature: -25°C to +55°C
  • Weight: 0.04 kg
