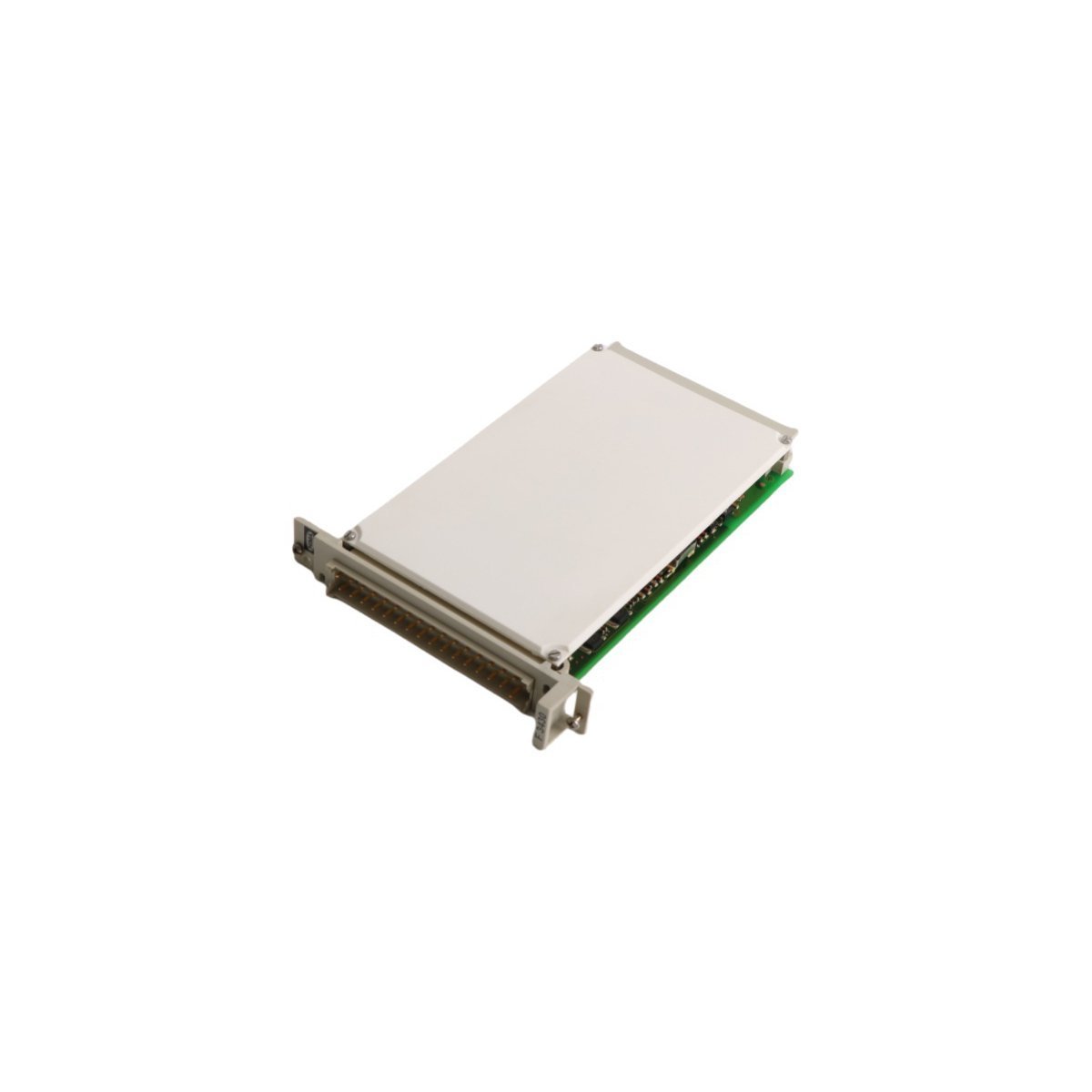

HIMA F3430 4-Channel Safe Relay Output Module

Technical Overview

The HIMA F3430 is a safety-certified relay output module engineered for the H41q and H51q safety systems. This module provides four independent, galvanically isolated relay channels designed to switch high-current loads or provide dry contact signals to external control circuits. By utilizing high-reliability mechanical relays with force-guided contacts, the F3430 ensures that safety-critical commands—such as equipment shutdowns or alarm activations—are executed with the highest degree of certainty required for Safety Instrumented Systems (SIS).

Functional Performance

This module functions as a critical interface between the digital logic of the safety controller and the physical field devices. Each of the four channels features internal monitoring and read-back capabilities, allowing the system to verify the actual state of the relay contacts against the commanded state. The F3430 is designed for “de-energize to trip” (fail-safe) applications, where a loss of power or a detected internal fault will cause the relays to open and return the process to a safe condition. Furthermore, the module includes integrated spark suppression and protective circuitry to extend the lifespan of the relay contacts when switching inductive loads.

Key Technical Characteristics

• Brand: HIMA
• Model Number: F3430
• Module Type: 4-Channel Relay Output (Safety Related)
• Contact Type: 4 independent potential-free changeover contacts (form C)
• Switching Voltage: Typically up to 250V AC / 125V DC
• Switching Current: Up to 5A per channel (load dependent)
• Safety Integrity Level: Certified for SIL 3 applications (IEC 61508)
• Galvanic Isolation: High-voltage isolation between channels and internal system bus
• Diagnostics: Front-panel LEDs for channel status (Active/Fault) and system health
• Configuration: Standard plug-in card for 19-inch HIMA subracks

Primary Applications

• Emergency Shutdown (ESD) Valves: Providing the high-power signal required to actuate solenoid valves for pipeline isolation.
• Motor Control Interlock: Directly interrupting the control power to motor starters in the event of a safety violation.
• Alarm and Annunciation: Driving high-decibel sirens or visual beacons in hazardous plant areas during emergency conditions.
• Redundant System Interfacing: Creating hardware-based interlocks between different safety-related subsystems.

Operational Advantages

• SIL 3 Certified Safety: Delivers rigorous protection for personnel and assets in high-risk environments like oil refineries and chemical plants.
• High Load Capacity: Allows the safety system to interface directly with field devices without the need for additional intermediate interposing relays.
• Contact State Monitoring: Enhances system diagnostics by detecting “stuck” contacts, ensuring the hardware is always ready to respond to a trip demand.
• Robust Electrical Isolation: Prevents electrical noise or field-side surges from damaging the central processing units of the safety system.
