SKU: CC-PAIM01 51405045-175

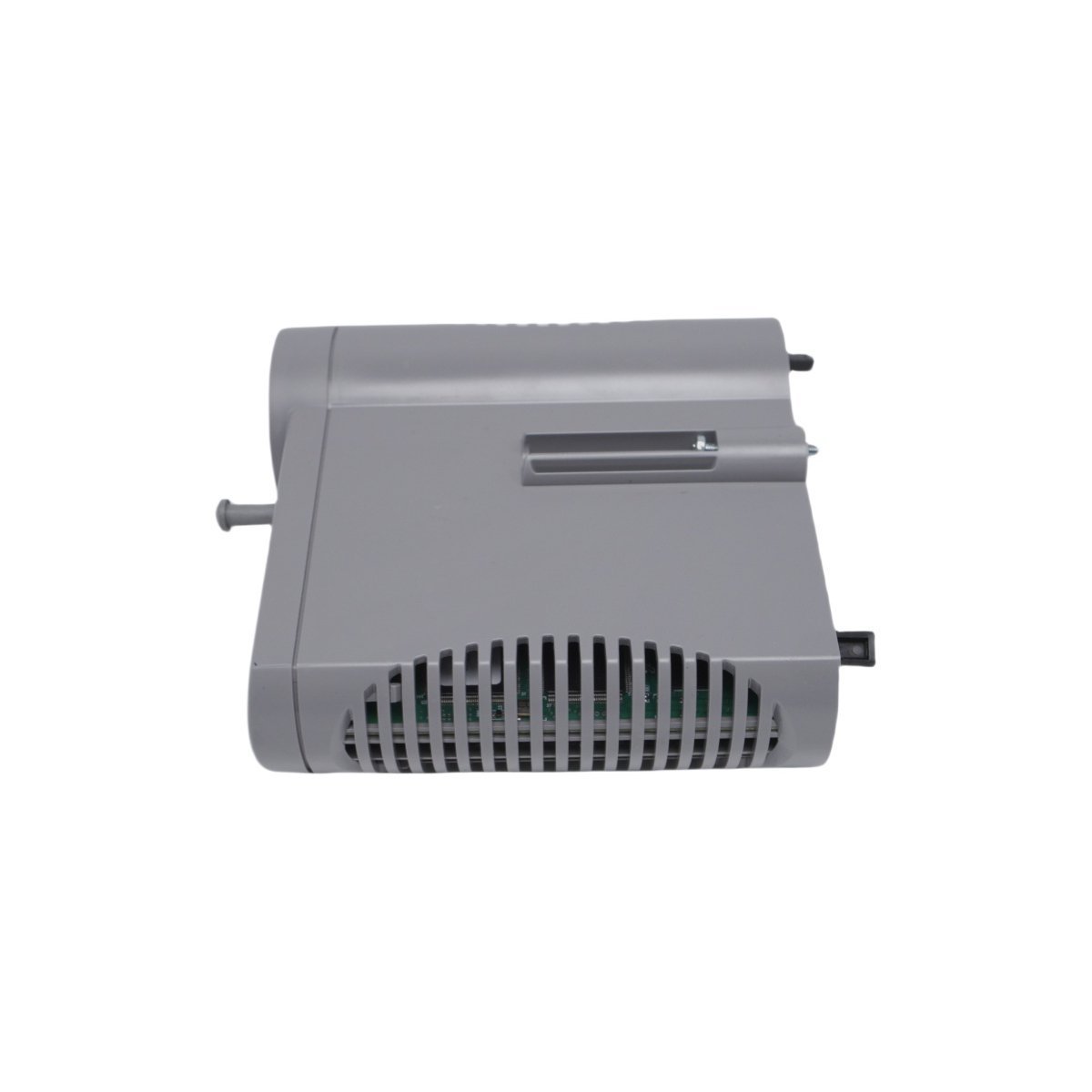

Honeywell CC-PAIM01 51405045-175 Experion C300 Analog Input Module

The Honeywell CC-PAIM01 (51405045-175) is a 16-channel Series C analog input module for the Experion PKS C300 controller. It provides high-precision 4-20 mA signal acquisition, advanced noise filtering, and redundant configuration support for mission-critical process automation.

Technical Overview

The Honeywell CC-PAIM01, specifically identified by part number 51405045-175, functions as a high-performance analog input module within the Experion Process Knowledge System (PKS). This module actively captures continuous electrical signals from field transmitters and converts them into precise digital data for the C300 controller. By utilizing advanced 16-channel processing, the CC-PAIM01 ensures that critical process variables, such as pressure, temperature, and flow, reach the control logic with high fidelity. Essentially, it acts as the primary sensory interface for the DCS, thereby providing the real-time data required for sophisticated closed-loop control and safety monitoring.

Key Features and Specifications

Brand: Honeywell
System Platform: Experion PKS (C300 Series)
Model Identifier: CC-PAIM01
Hardware Part Number: 51405045-175
Input Configuration: 16 Non-Differential Analog Input Channels
Signal Range: Standard 4-20 mA current loops
Hardware Revision: “Series C” Form Factor
Installation Style: Requires a compatible Input/Output Termination Assembly (IOTA)
Error Detection: Integrated open-wire and out-of-range signal diagnostics

Functional Integration and Signal Integrity

The CC-PAIM01 manages the complexities of signal acquisition by employing high-resolution analog-to-digital converters (ADC) on every channel. This hardware actively filters out electrical noise and 50/60 Hz interference; consequently, it delivers a clean, stable signal even in environments with high electromagnetic activity. In addition to this filtering, the module incorporates sophisticated calibration logic that maintains measurement accuracy over the entire operating temperature range.

Furthermore, the 51405045-175 hardware revision features enhanced galvanic isolation, which protects the internal C300 bus from field-side surges. As a result of this protective barrier, the module prevents local electrical faults from cascading into the central processing unit. Moreover, the CC-PAIM01 supports redundant I/O configurations; accordingly, if the primary module encounters a hardware failure, the secondary unit takes over the data acquisition task without missing a single scan cycle. In light of these safeguards, the module ensures maximum process visibility for the plant operators at all times.

Application and Reliability

Control engineers prioritize the Honeywell CC-PAIM01 for high-stakes industrial applications, including chemical refining, pharmaceutical manufacturing, and power generation. The module provides the ruggedized performance necessary to endure the thermal stresses common in high-density control cabinets. Beyond its physical durability, the PAIM module facilitates seamless integration with Hart-compatible field devices, thereby allowing the system to capture secondary diagnostic data for proactive asset management.

Because the module utilizes a Series C modular design, maintenance personnel can perform rapid “hot-swap” replacements while the IOTA remains wired. Ultimately, the CC-PAIM01 provides the reliable signal accuracy and deterministic response times required to manage hazardous process loops, thus upholding the operational safety of global industrial facilities. By virtue of its high MTBF, this module remains a trusted component for long-term plant stability and regulatory compliance.
