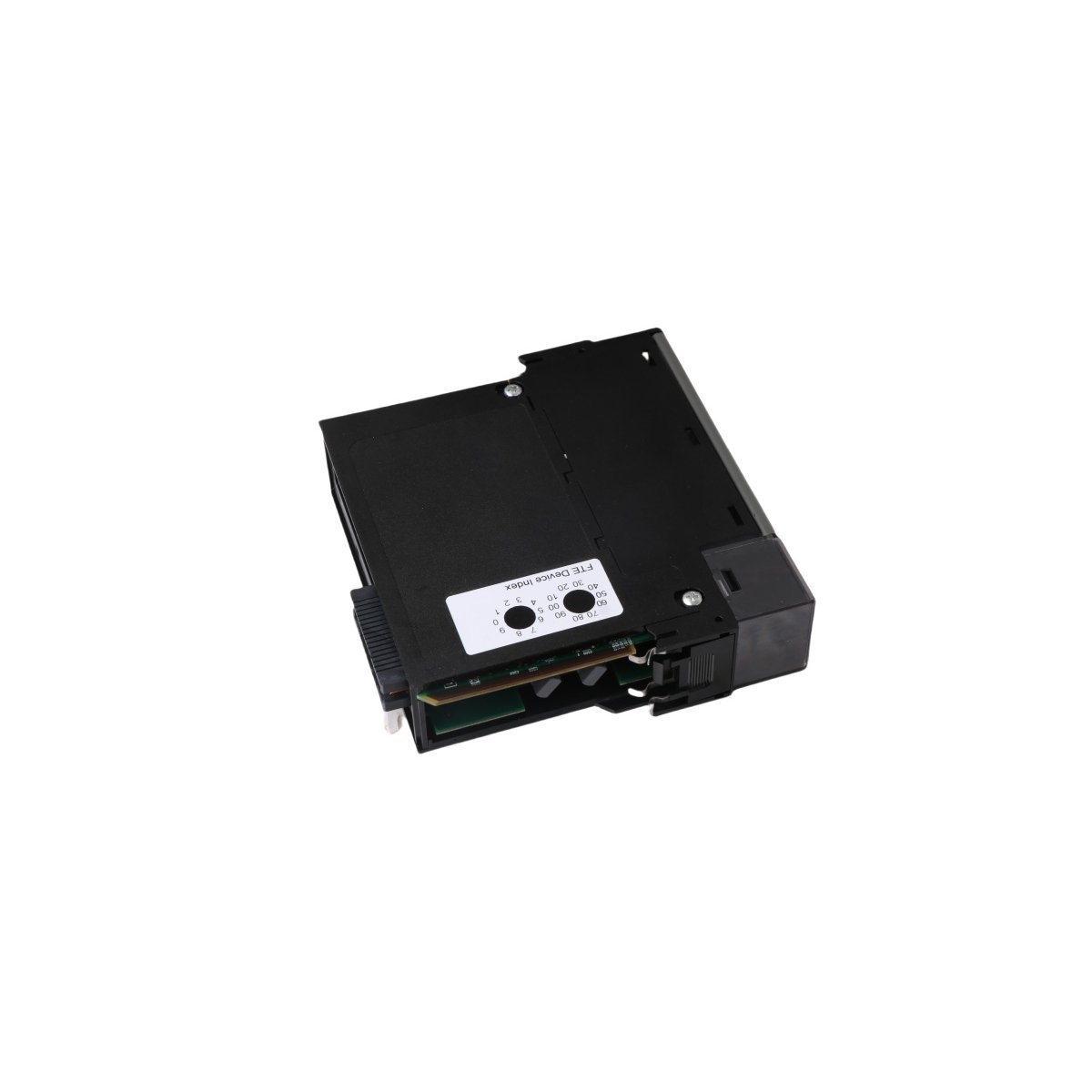

Honeywell TK-FTEB01 51309512-175 Ethernet Bridge Module

Technical Overview

The Honeywell TK-FTEB01, specifically designated by part number 51309512-175, functions as the primary communication link within the Experion Process Knowledge System (PKS) architecture. This module actively drives high-speed data synchronization between C300 controllers and the critical Fault Tolerant Ethernet (FTE) infrastructure. By establishing a high-bandwidth bridge, the TK-FTEB01 ensures that real-time process variables reach HMI consoles and supervisory servers with exceptional speed. Consequently, it serves as an intelligent gateway that maintains a deterministic data path while securing the control network against external traffic interference.

Key Features and Specifications

• Manufacturer: Honeywell
• System Family: Experion PKS (C300 Control Series)
• Model Identifier: TK-FTEB01
• Hardware Part Number: 51309512-175
• Network Interface: Dual-channel Fault Tolerant Ethernet (FTE)
• Connection Ports: 2 x RJ45 Industrial Ethernet ports
• Installation Style: Compatible with C300 Input/Output Termination Assemblies (IOTA)
• Monitoring Tools: Integrated LED array for link status, packet activity, and module health

Functional Integration and Network Redundancy

The TK-FTEB01 coordinates complex network traffic by leveraging Honeywell’s proprietary FTE technology. This advanced protocol generates a redundant communication path for every data packet; consequently, it eliminates the threat of a system-wide shutdown during a single-cable or switch failure. In addition to this redundancy, the module’s dual-port functionality allows it to monitor both network branches simultaneously to verify path integrity.

Furthermore, the 51309512-175 hardware revision incorporates sophisticated filtering logic that shields the C300 controller from network storms and unwanted data packets. As a result of these protective layers, the module sustains a steady communication environment that permits the processor to execute its logic without interruption. Moreover, this robust interface maintains high data throughput even during peak network congestion, thereby preserving the safety and accuracy of the entire process loop.

Application and Reliability

Control engineers deploy the Honeywell TK-FTEB01 in high-stakes industrial sectors, including petrochemical refining and offshore oil production. The module provides the ruggedized physical protection required to withstand thermal fluctuations and intense electromagnetic noise. Beyond its physical durability, the TK-FTEB01 facilitates comprehensive remote monitoring through the Experion management suite, which allows maintenance crews to resolve network anomalies before they impact production.

Because the module supports hot-swappable installation, technicians can replace or upgrade hardware components without de-energizing the control node. Ultimately, the TK-FTEB01 provides the deterministic connectivity and high-speed response times necessary for modern automation systems, thus ensuring the continued safety and efficiency of global industrial infrastructure.
