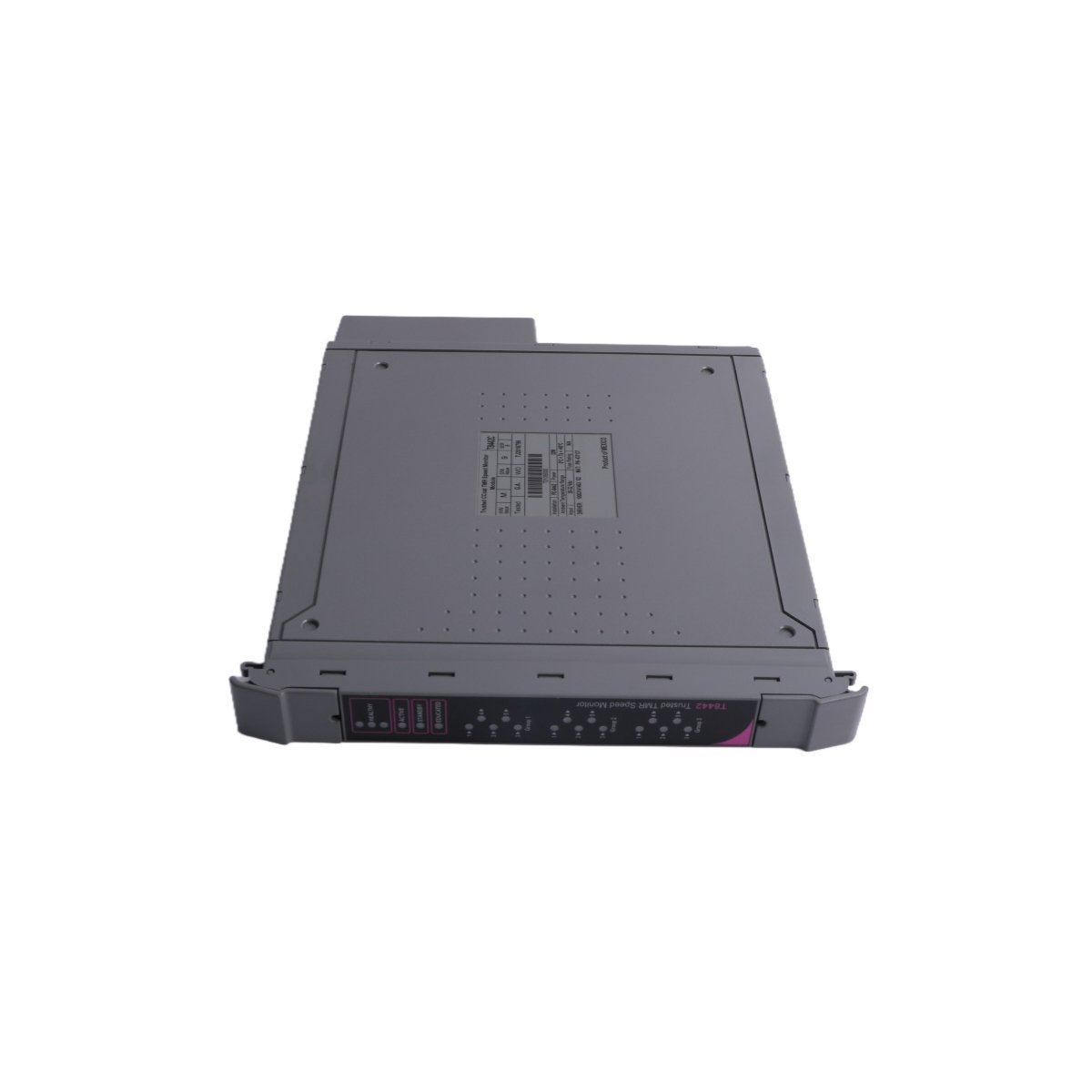

ICS Triplex Trusted T8442C Triple Modular Redundant Speed Monitor

Product Overview

The ICS Triplex T8442C functions as a high-density Speed Monitor specifically engineered for the Trusted Triple Modular Redundant (TMR) System. Primarily, this module delivers critical safety supervision for industrial rotating equipment, ensuring that machinery operates within predefined velocity limits. Consequently, it serves as a fundamental component in overspeed protection systems where failure to trip could result in catastrophic mechanical damage. By utilizing a triplicated architecture, the T8442C provides the high-integrity monitoring required for mission-critical automation and safety-instrumented functions (SIF).

Technical Performance and Functional Features

• Triple Modular Redundancy (TMR): In addition to its robust hardware, the module executes a voting mechanism across three independent sub-channels. This design inherently tolerates single-point failures and maintains system availability without compromising safety.
• Advanced Internal Diagnostics: Furthermore, the T8442C runs comprehensive self-tests that identify both overt and covert faults. Because the module performs these tests during active system demand, it ensures continuous protection without interrupting process operations.
• Rapid Fault Detection: Regarding response times, the hardware implementation identifies system errors almost instantaneously. As a result, the module protects critical system elements by triggering safety actions before faults escalate.
• Integrated Line Monitoring: To enhance field-side security, the unit incorporates line-monitoring facilities specifically recommended for energize-to-trip configurations. Thus, it effectively supervises the integrity of external wiring and sensor connections.
• Flexible Slot Configurations: Moreover, the module supports both active-standby and SmartSlot deployment options. This flexibility allows engineers to tailor the hardware arrangement to meet specific reliability and maintenance targets.

Operational Compatibility and Integration

System architects seamlessly integrate the T8442C into the Trusted TMR framework to achieve maximum safety availability. In addition to its fault-tolerant processing, the module supports online repair, which allows maintenance personnel to replace components without shutting down the entire process. Furthermore, the module facilitates discrepancy and deviation monitoring. Consequently, the system can verify signal consistency across all three channels, which significantly improves the reliability of the speed data. Because the T8442C originates from a heritage of rigorous safety engineering, it satisfies the strict regulatory demands of high-demand industrial sectors like power generation and turbine control.

Technical Specifications Summary

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Number: T8442C
• Product Series: Trusted TMR System
• Module Type: Triplicated Speed Monitor
• Architecture: Triple Modular Redundant (TMR)
• Module Weight: 1.26 kg
• Dimensions: 3 x 30.2 x 26.5 cm
• Mounting Location: Trusted Chassis / Subrack
