  4. ABB RETA-01 Ethernet Adapter Module
Sale!

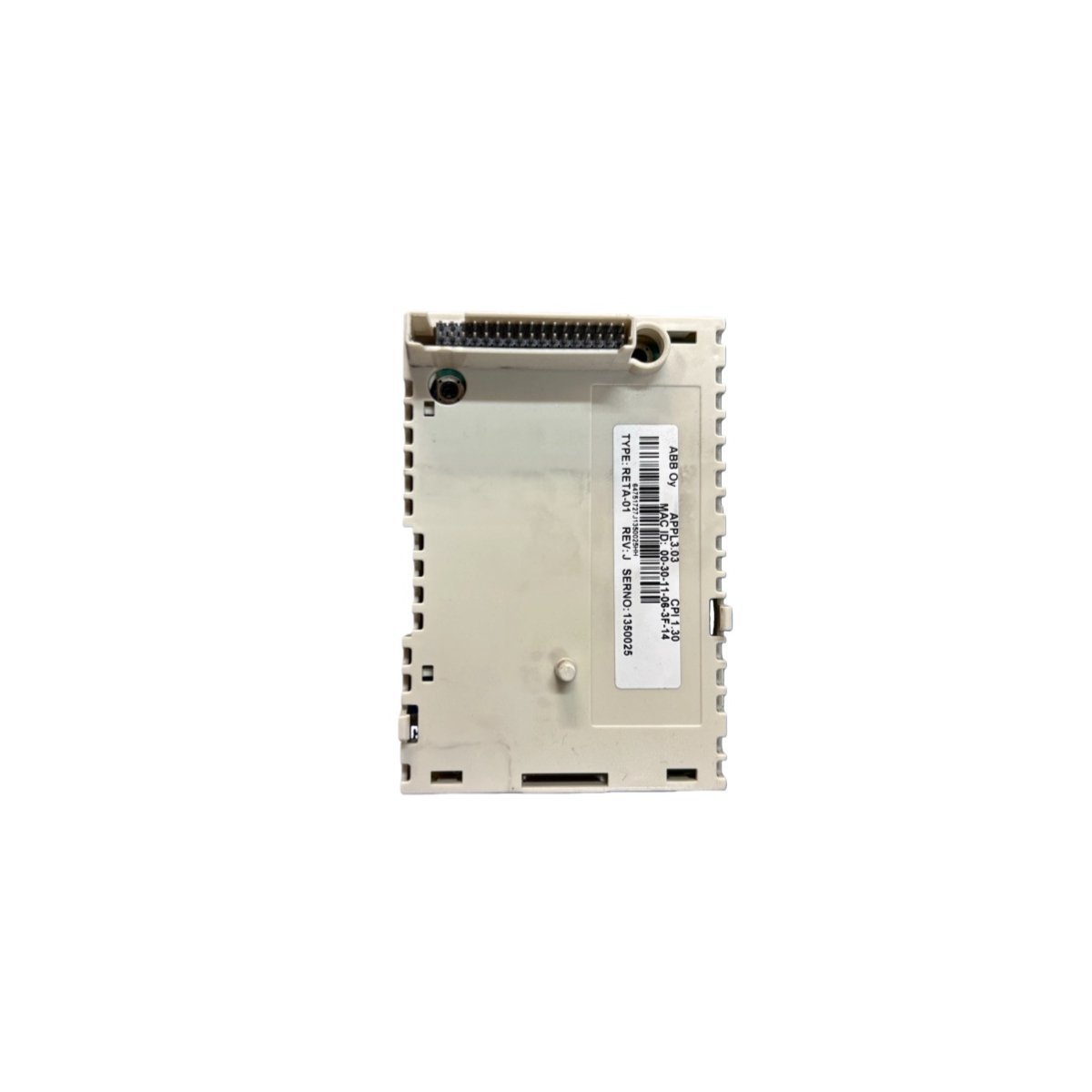

  • ABB RETA-01 Ethernet Adapter Module
  • RETA-01 ABB Ethernet Adapter Module
  • RETA-01 ABB
  • ABB RETA-01 Ethernet Adapter Module
  • RETA-01 ABB Ethernet Adapter Module
  • RETA-01 ABB
SKU: RETA-01

ABB RETA-01 Ethernet Adapter Module

Purchase the brand new original stock ABB RETA-01 Ethernet Adapter Module. Seamlessly maps control words and drive parameters onto industrial networks. Authorized authentic stock with fast global shipping options. Contact us now.

Request a Quote

Configured for specific technical task execution in DCS networks, the ABB RETA-01 (RETA-01 Ethernet Adapter Module) provides direct physical/electrical execution.

Hardware Specifications

ParameterSpecification
ModelRETA-01
BrandABB
OriginSweden
Module TypeEthernet Adapter Module
System PlatformDCS / ABB Drives Options Slot
Communication ProtocolsModbus/TCP, EtherNet/IP
HS Code8537101190
Weight1.22 kg
Dimensions24 x 19 x 5.3 cm
Operating Temp0 to +50 deg C
Power ConsumptionDriven internally via host motor control board slot

Industrial Control & Drive Connectivity

The RETA-01 interfaces directly with the host drive’s motor control board to bridge internal parameter tables with external network fabrics. The module optimizes protocol conversion latencies when translation blocks pass command words, such as remote initialization and execution loops, onto Profinet / EtherNet/IP deterministic networks. This design maintains strict real-time control register update rates, allowing high I/O density scaling during concurrent processing of multi-protocol slave inquiries.

Frequently Asked Questions

Q: What are the protocol selection limitations during initial network integration?

A: The RETA-01 module supports both Modbus/TCP and EtherNet/IP protocols. The operational protocol selection is governed by internal drive parameter switches and specific hardware dip-switch configurations before power-on mapping.

Q: Is online hot-swap allowed for this adapter card during live drive operations?

A: No. The RETA-01 must be physically seated into the dedicated option slot of the motor control board while the drive framework is entirely unpowered to prevent permanent electrical damage to the logic interfaces.

Field Installation Guidelines

  • Option Slot Alignment: Insert the card into the designated slot on the drive control unit. Ensure all multi-pin headers align correctly prior to applying downward seating pressure to prevent pin distortion.
  • Cable Strain Relief: Secure the network cables using physical cable ties connected to the drive chassis frame to insulate the RJ-45 mating interface from external stress and vibration.
  • Shielding Continuity: Utilize category 5e or higher shielded twisted pair (STP) lines. Ensure the metallic connector shell establishes low-impedance contact with the grounding fingers of the module communication port.
