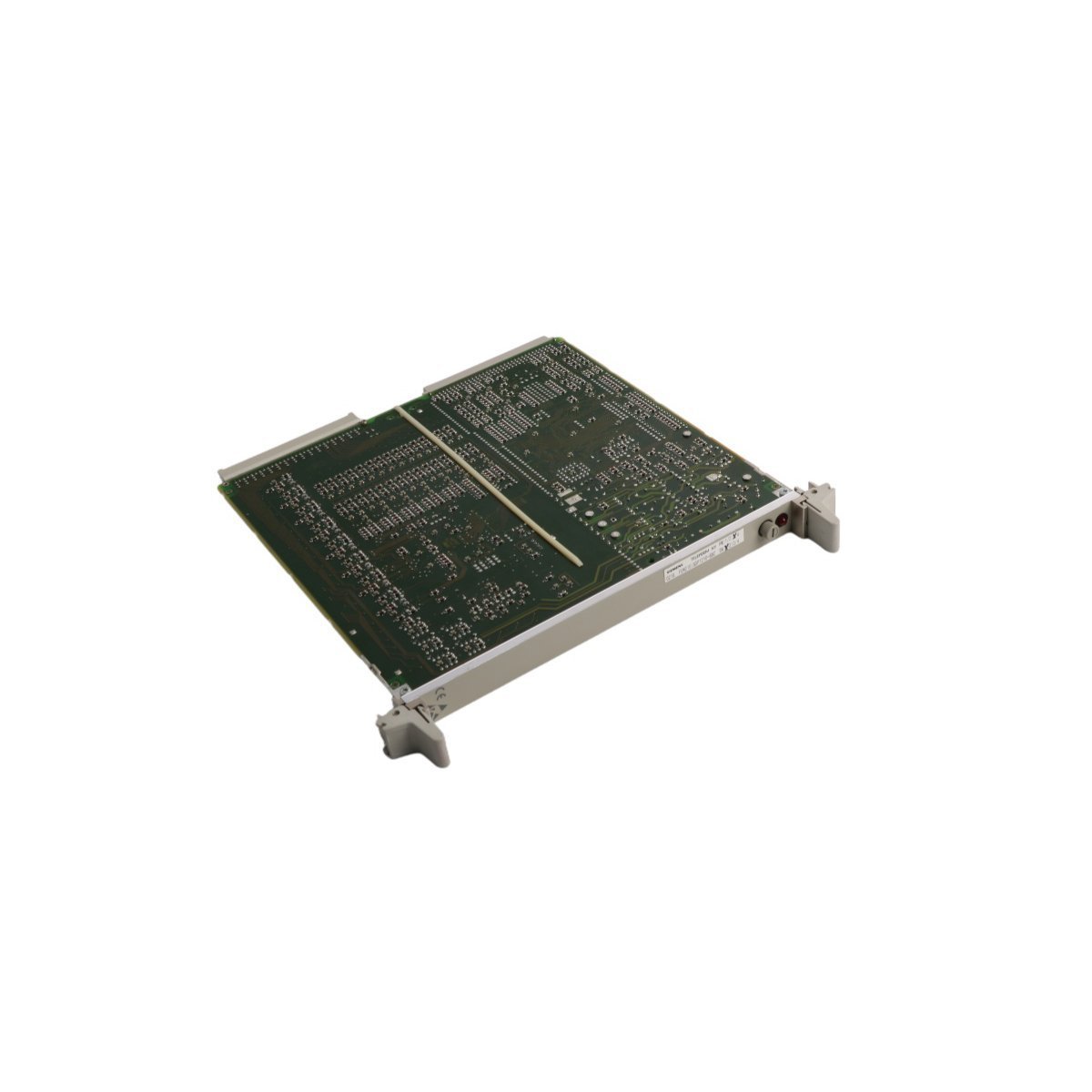

Siemens 6DP1210-8CA TELEPERM M Sensor Conditioning Module

Technical Overview

The Siemens 6DP1210-8CA operates as a specialized sensor conditioning module within the legacy TELEPERM M process control system. This module functions as a high-precision analog interface that prepares raw signals from field-mounted sensors for digital processing by the central controller. Because industrial sensors often produce low-voltage or non-linear outputs, the 6DP1210-8CA provides the necessary amplification, filtering, and normalization required to maintain signal integrity. By converting various physical measurements into a standardized internal format, this module ensures that the automation system receives accurate and reliable data from the plant floor.

Operational Logic and Signal Normalization

The 6DP1210-8CA manages incoming analog signals by applying rigorous conditioning algorithms to eliminate common-mode noise and high-frequency interference. To ensure maximum accuracy, the module utilizes high-stability components that minimize thermal drift in sensitive environments. Furthermore, the unit facilitates galvanic isolation between the field sensors and the internal system bus, effectively protecting the central processing unit from electrical surges and ground loops. Moreover, since the 6DP1210-8CA supports multiple sensor types, it offers a versatile solution for different process variables.

To further improve system diagnostics, the module incorporates self-monitoring routines that verify the health of the input loops. In addition to basic signal conversion, the 6DP1210-8CA detects anomalies such as wire breaks or sensor saturation, reporting these faults immediately to the supervisory level. Consequently, this proactive monitoring prevents the control logic from acting on corrupted or missing data. As a result, the 6DP1210-8CA serves as a fundamental building block for maintaining the safety and efficiency of continuous processes in heavy industries, including power generation and chemical manufacturing.

Key Technical Characteristics

• Brand: Siemens
• Model Number: 6DP1210-8CA
• Product Series: TELEPERM M
• Module Type: Sensor Conditioning / Analog Input Interface
• Isolation: Galvanic isolation between field and system side
• Input Support: Standardized analog signals and specialized sensor types
• Signal Filtering: Integrated low-pass filtering for noise rejection
• Diagnostic Indicators: Front-panel status monitoring
• Mounting: Rack-mount configuration within TELEPERM subracks
• Hardware Revision: Standard industrial grade for continuous operation

Primary Applications

• Normalizing temperature and pressure signals in power plant control rooms.
• Conditioning flow meter inputs for chemical batch processing.
• Interfacing legacy sensors with modernized TELEPERM M system architectures.
• Managing critical signal loops in oil and gas refinery automation.
• Providing high-isolation input channels for water and wastewater treatment facilities.
