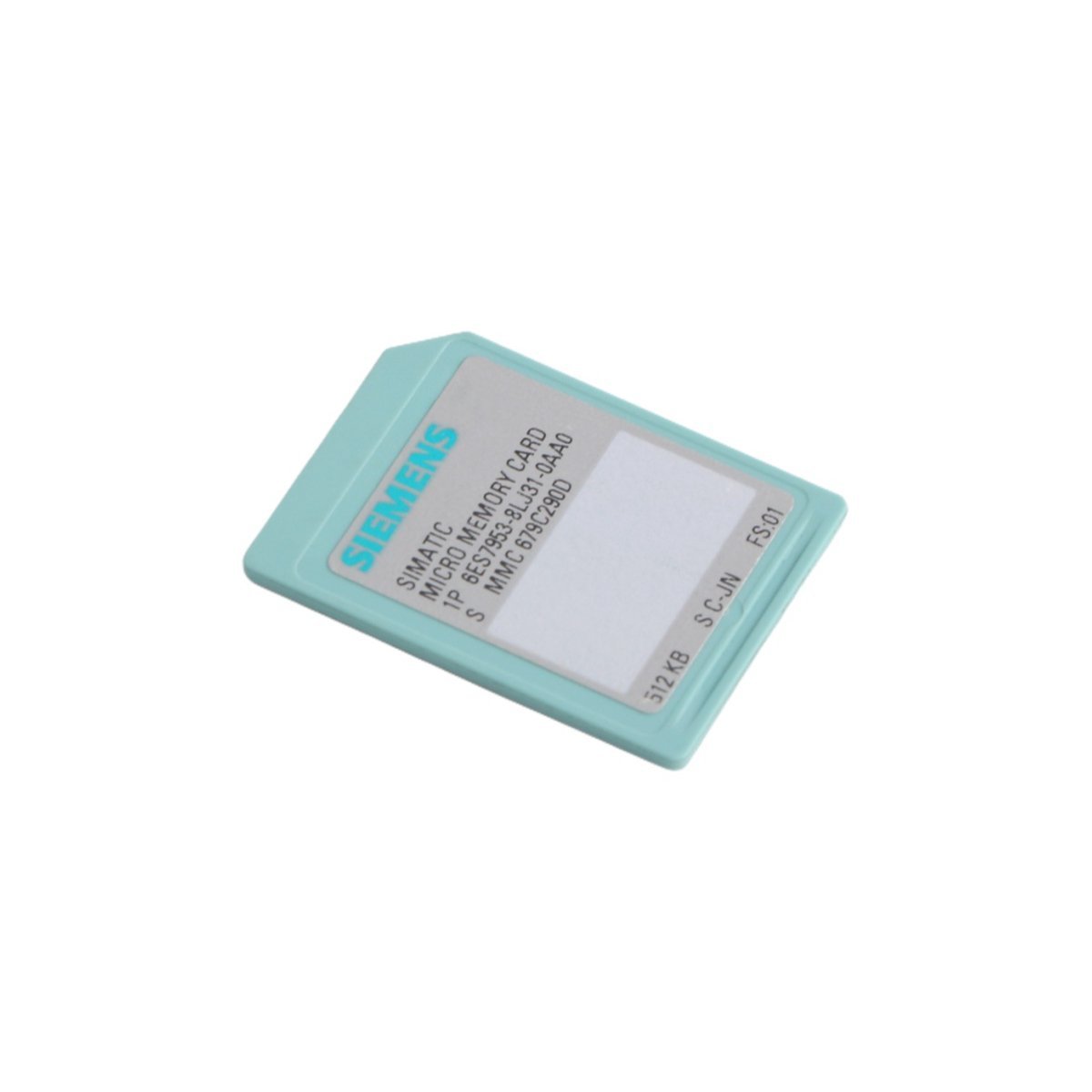

Siemens 6ES7953-8LJ31-0AA0 SIMATIC S7 Micro Memory Card

Specialized Industrial Storage Overview

The Siemens 6ES7953-8LJ31-0AA0 Micro Memory Card serves as a high-reliability, non-volatile storage medium engineered specifically for the SIMATIC S7-300 and ET 200 series. By utilizing advanced 3.3V NAND Flash technology, this module ensures that critical automation programs and hardware configurations remain intact during complete power losses. Furthermore, the unit functions as the primary execution memory for specific PLC CPUs, which effectively eliminates the requirement for a backup battery and reduces long-term maintenance costs for the end user.

Detailed Technical Specifications

• Manufacturer: Siemens
• Model / Order Number: 6ES7953-8LJ31-0AA0
• Storage Capacity: 512 KB
• Memory Technology: NAND Flash (3.3 V)
• Compatibility: SIMATIC S7-300, ET 200, C7
• Minimum Data Retention: 10 years after the final programming action
• Write/Erase Cycles: Minimum 100,000 operations
• Dimensions: 32 mm x 24 mm x 2.1 mm
• Weight: 0.02 kg
• Lifecycle Status: Phase-out started October 2023 (Successor available)

Key Performance Benefits

Engineers choose the 6ES7953-8LJ31-0AA0 because it provides a ruggedized alternative to commercial-grade storage solutions. For instance, the card actively maintains data integrity despite the significant vibration, high humidity, and electromagnetic interference (EMI) commonly found in factory floor environments. Moreover, the module facilitates seamless firmware updates and project porting between different CPUs. Because this MMC supports the storage of user blocks, symbols, and comments, it significantly simplifies on-site troubleshooting and system recovery procedures.

Primary Application Environments

• S7-300 PLC Systems: Acts as the mandatory loading memory for modern S7-300 central processing units.
• Distributed I/O: Provides local configuration storage for ET 200 interface modules and specialized motor starters.
• Firmware Management: Enables technicians to perform secure hardware updates without specialized programming equipment.
• Legacy System Support: Ensures continued operation for installed C7 integrated control systems during repair or expansion.
