Technical Overview

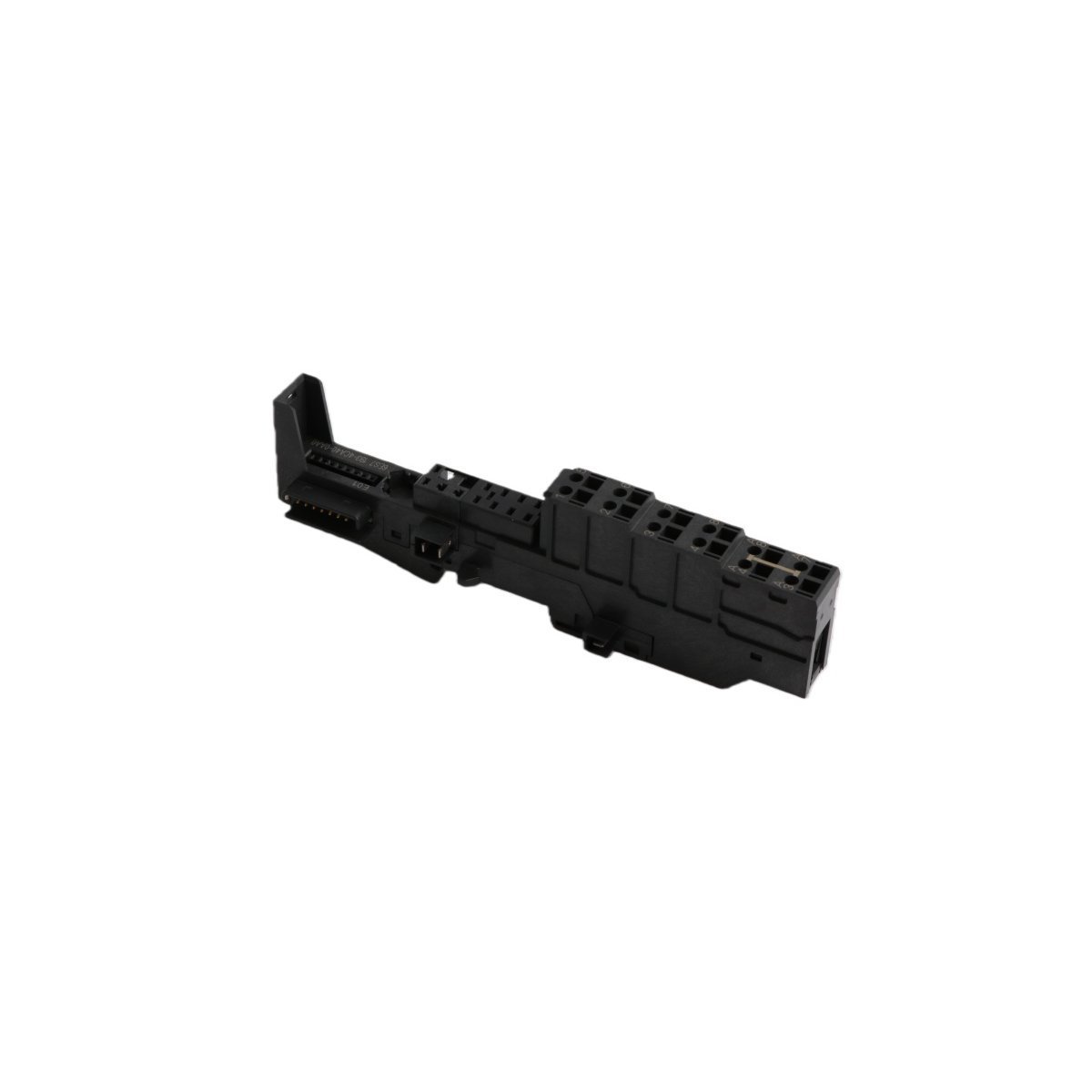

The Siemens 6ES7193-4CA40-0AA0 serves as a universal TM-E15S24-01 terminal module specifically engineered for the SIMATIC ET 200S distributed I/O system. This module actively functions as the mechanical and electrical foundation for electronic modules, providing the necessary interface between the backplane bus and the field-level wiring. By utilizing a compact 15mm width, the 6ES7193-4CA40-0AA0 facilitates high-density cabinet layouts while maintaining secure signal integrity. In essence, it acts as the permanent wiring base, thereby allowing electronic modules to be replaced without disturbing the existing field connections.

Key Features and Specifications

• Manufacturer: Siemens
• Product Range: SIMATIC DP / ET 200S
• Model Identifier: 6ES7193-4CA40-0AA0
• Module Type: TM-E15S24-01
• Terminal Type: Screw-type terminals (2×4 terminals)
• AUX Bus: Without AUX bus (Continuous power bus connection)
• Width: 15 mm
• Voltage Rating: Up to 24 V DC (Standard)
• Installation: DIN rail mounting with mechanical bus connector

Functional Integration and Installation Efficiency

The 6ES7193-4CA40-0AA0 manages the complexities of decentralized I/O by enforcing a modular and scalable hardware architecture. This terminal module actively establishes the connection to the internal data bus and the power bus; consequently, it ensures that the inserted electronic module receives both power and communication signals instantly upon installation. In addition to this electrical routing, the module incorporates a mechanical coding system. Building upon this safety feature, the coding mechanism prevents the insertion of incorrect module types into the base; accordingly, it protects sensitive electronics from potential voltage mismatches or configuration errors.

Application and Reliability

Control engineers prioritize the Siemens 6ES7193-4CA40-0AA0 for mission-critical automation sectors, including automotive manufacturing, water treatment, and food processing. The module provides the industrial-grade durability required to withstand the vibration and electromagnetic interference (EMI) typical of factory-floor control panels. In conjunction with its modularity, the 6ES7193-4CA40-0AA0 facilitates rapid system expansion, thereby allowing facilities to add I/O capacity as production requirements evolve. Along the same lines, the module’s clear labeling and accessible terminal layout reduce the risk of wiring mistakes during the commissioning phase.

Because the module utilizes a standardized SIMATIC DP interface, it integrates seamlessly into any Profibus or Profinet architecture managed by S7-300, S7-400, or S7-1500 controllers. Correspondingly, this standardization simplifies global inventory management by using a single terminal base for various digital and analog electronic modules. Ultimately, the 6ES7193-4CA40-0AA0 delivers the stable physical platform and low-resistance electrical connections required to manage complex field data, thus upholding the operational integrity of global Siemens automation systems. In summary, this terminal module acts as a reliable and indispensable cornerstone for any high-performance distributed I/O station.
