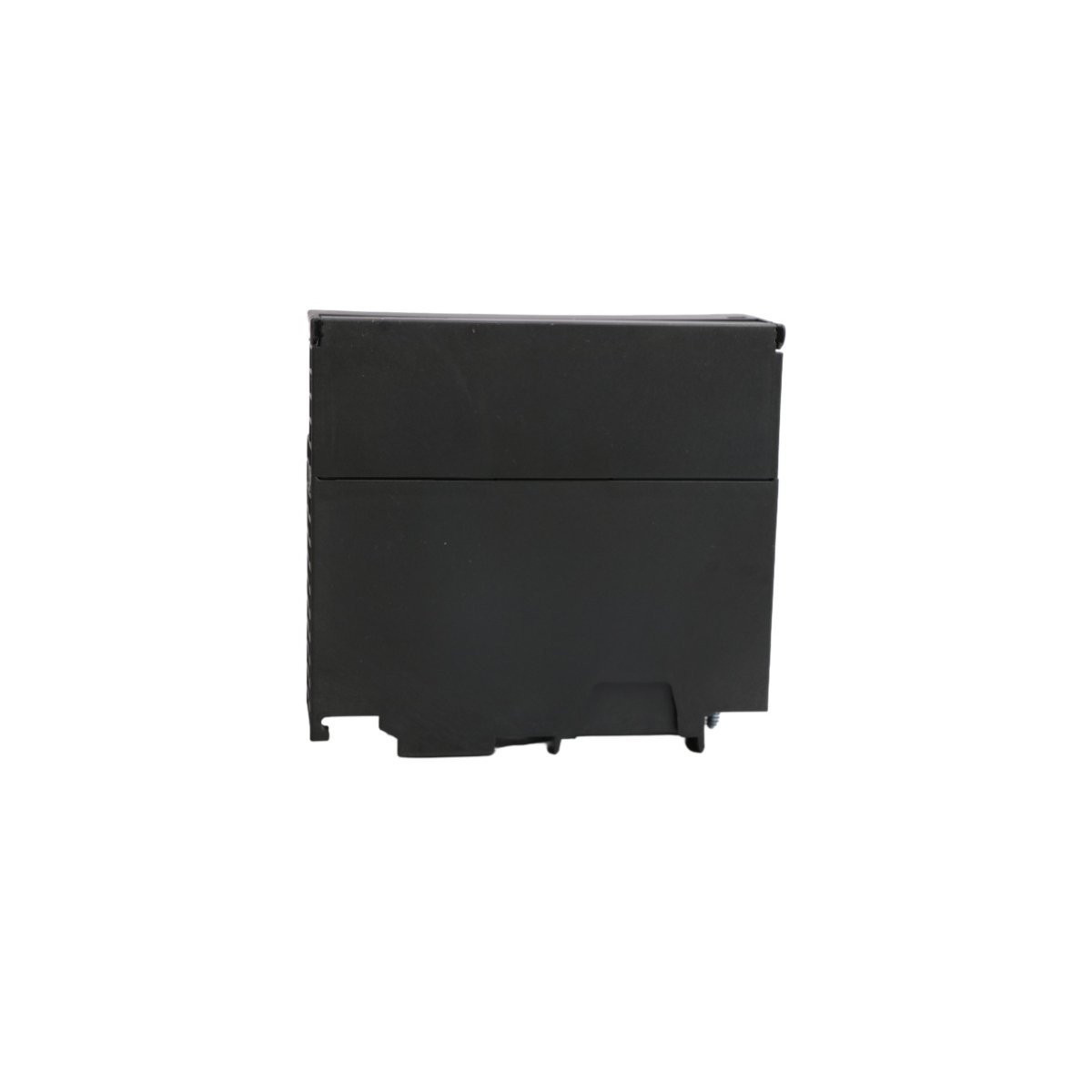

Siemens SIMATIC S7-300 IM 360 Interface Module 6ES7360-3AA01-0AA0

Product Overview

The Siemens 6ES7360-3AA01-0AA0 functions as the primary IM 360 interface module specifically engineered for the SIMATIC S7-300 PLC series. Primarily, this module resides in the central rack (Rack 0) to initiate the connection for multi-tier hardware expansion. Consequently, it serves as the master gateway that allows the central CPU to communicate with up to three expansion racks (ER). By providing a dedicated link for the internal backplane bus, the 6ES7360-3AA01-0AA0 ensures that signal integrity remains high even when the system scales to its maximum configuration of 32 modules.

Technical Performance and Functional Features

• Multi-Rack Expansion Capability: In addition to its compact form factor, the module enables the connection of three additional racks (Racks 1, 2, and 3). This architectural flexibility allows the system to support complex automation tasks that exceed the capacity of a single rail.
• High-Speed Backplane Extension: Furthermore, the IM 360 utilizes a specialized interface to extend the C-bus (communication bus) and the P-bus (peripheral bus). As a result, the hardware maintains rapid data exchange rates across the entire multi-rack assembly without signal lag.
• Integrated Power Supply Bridge: To ensure operational stability, the module transmits the necessary supply voltage to the connected IM 361 receiver modules. Thus, it effectively powers the communication logic of the expansion racks, simplifying the overall cabinet power distribution.
• Status Monitoring and Diagnostics: Regarding reliability, the front panel features a “SF” (System Fault) LED indicator. Moreover, this diagnostic tool provides instant visual feedback if a connection error or a module failure occurs within the expansion chain.
• Simple Interconnection Hardware: To facilitate a clean installation, the module connects to expansion racks via the 368-series connecting cables. Consequently, it eliminates the need for complex field wiring, which significantly reduces the time required for system commissioning.

Operational Compatibility and Integration

System engineers seamlessly integrate the 6ES7360-3AA01-0AA0 into the first slot next to the CPU in the central rack. In addition to its physical robust design, the module requires no complex software configuration; the CPU automatically recognizes the expanded I/O map through the hardware backplane link. Furthermore, because this interface module supports a maximum distance of 10 meters between racks, it successfully satisfies the requirements for distributed cabinet layouts. Ultimately, these features combine to provide a scalable, high-integrity foundation for large-scale manufacturing and process control systems.

Technical Specifications Summary

• Manufacturer: Siemens
• Model Designation: IM 360 Interface Module
• Order Number: 6ES7360-3AA01-0AA0
• Product Family: SIMATIC S7-300
• Function: Connection of expansion racks to the central rack
• Max Number of Expansion Racks: 3
• Current Consumption: 350 mA (typical)
• Power Loss: 2 W (typical)
• Dimensions: 40 x 125 x 120 mm
• Weight: 0.24 kg
