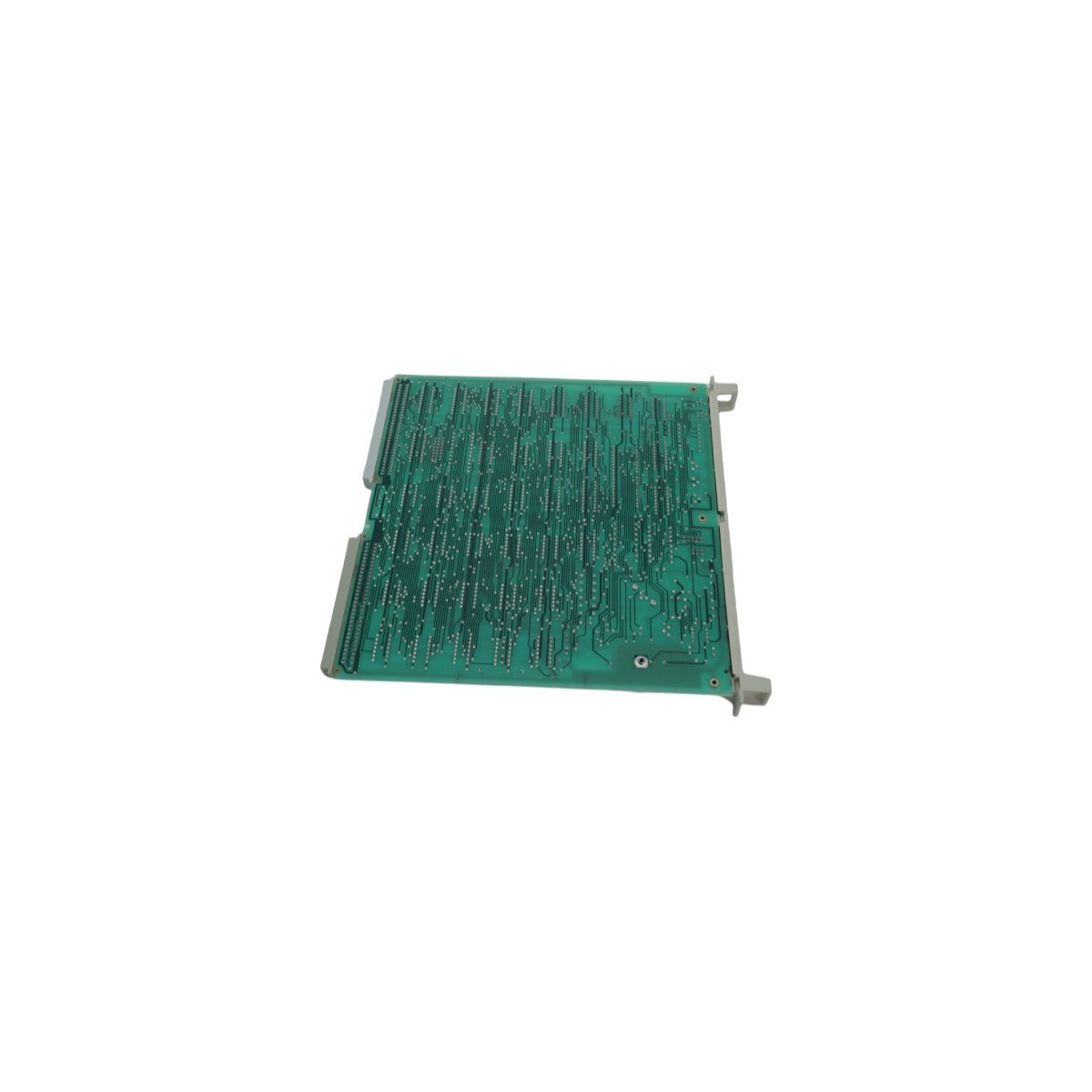

ABB DSMC110 57330001-N MasterPiece Floppy Disk Interface Board

Technical Overview and Core Functionality

The ABB DSMC110, specifically categorized under order number 57330001-N, serves as a high-precision Floppy Disk Interface Board within the MasterPiece series of Distributed Control Systems (DCS). This board facilitates the critical link between the processor and storage media, allowing for secure data logging, parameter backup, and software loading. By utilizing advanced semiconductor components, the module effectively optimizes data transfer rates while maintaining high energy efficiency across the control network.

This interface board plays a vital role in maintaining legacy industrial systems, providing a reliable bridge for data exchange where traditional media is still utilized. Consequently, it supports the continuity of manufacturing operations by ensuring that configuration data remains accessible and transferable between different system nodes.

Operational Characteristics and Integration

• Comprehensive compatibility with the MasterPiece DCS environment and various industrial machinery.
• Integrated fan-forced air cooling system maintains thermal stability during periods of high operational load.
• Modular architecture streamlines the installation process and simplifies routine maintenance or hardware swaps.
• Active status availability ensures continued support for long-term industrial infrastructure life cycles.

Industrial Durability and Specifications

• Manufacturer: ABB
• Model: DSMC110
• Part Number: 57330001-N
• Product Series: MasterPiece
• Device Type: Floppy Disk Controller / Interface Board
• Operating Temperature: -20°C to +60°C
• Protection Rating: IP21 (Protects against solid objects and vertical water droplets)
• Net Weight: 0.36 kg
• Unit Dimensions: 2.0cm x 24.8cm x 24.4cm
• Manufacturing Origin: Sweden

Performance Advantages

The DSMC110 stands out due to its ruggedized construction, which specifically caters to harsh factory floor conditions. For instance, the IP21-rated housing safeguards the internal ASEA circuit board from particulate contamination and minor moisture exposure. Furthermore, the board includes sophisticated diagnostic tools that empower technicians to perform proactive monitoring. As a result, facilities can significantly reduce unplanned downtime through faster troubleshooting and more accurate system health assessments.
