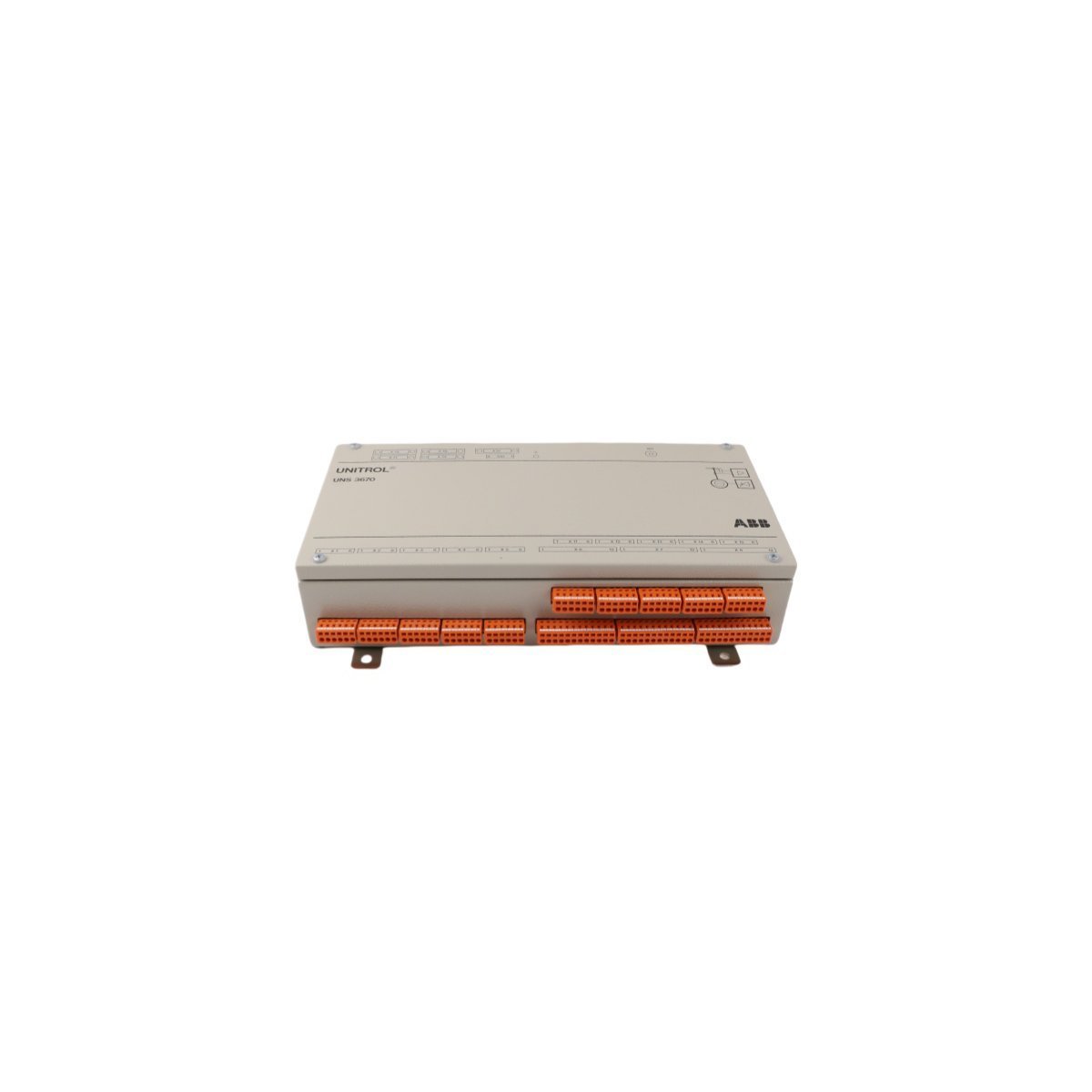

ABB HIEE205011R0002 UNS3670A-Z,V2 UNITROL 5000 Converter Electronics Module

Primary Function and Control Capabilities

The ABB HIEE205011R0002, part of the UNS3670A-Z,V2 series, functions as a core control element within the UNITROL 5000 excitation system. This converter electronics module orchestrates the high-speed processing of power conversion signals, enabling precise regulation of synchronous machine excitation. By utilizing advanced microprocessor technology, the module manages complex algorithmic tasks that ensure the stability and efficiency of power generation units. Furthermore, the unit acts as a critical interface within the Distributed Control System (DCS), facilitating real-time data exchange and hardware synchronization across the industrial network.

Performance Specifications and System Design

Engineered to handle high-frequency switching operations, the UNS3670A-Z,V2 maintains a remarkable output frequency of 50kHz. This capability allows for ultra-responsive adjustments to voltage and current, which is vital for maintaining grid compliance in power plants. The hardware operates reliably at a nominal 220V rating and incorporates high-grade electronic components designed to resist electromagnetic interference. Consequently, the module provides a stable control loop even when situated near high-power switching gear. Its compact physical profile permits straightforward integration into existing control cabinets, thereby reducing the space required for system upgrades.

Essential Technical Specifications

• Manufacturer: ABB
• Order Number: HIEE205011R0002
• Model Code: UNS3670A-Z,V2
• Product Line: UNITROL 5000 Excitation Systems
• Module Category: Converter Electronics / DCS Control Card
• Operational Frequency: 50kHz
• Voltage Rating: 220V
• Manufacturing Origin: Sweden
• Physical Weight: 4.28 kg
• Unit Dimensions: 40 x 25 x 9.5 cm

Industrial Application and Reliability

ABB designed the HIEE205011R0002 specifically for harsh industrial environments where downtime results in significant financial loss. The module features a ruggedized construction that withstands the thermal and mechanical stresses common in energy production and heavy manufacturing sectors. Moreover, the intuitive interface allows technicians to perform diagnostics and maintenance tasks with greater efficiency. Because the module supports standard Ethernet communication services, it integrates into modern digital ecosystems, supporting the transition toward more intelligent and autonomous power management infrastructures.
