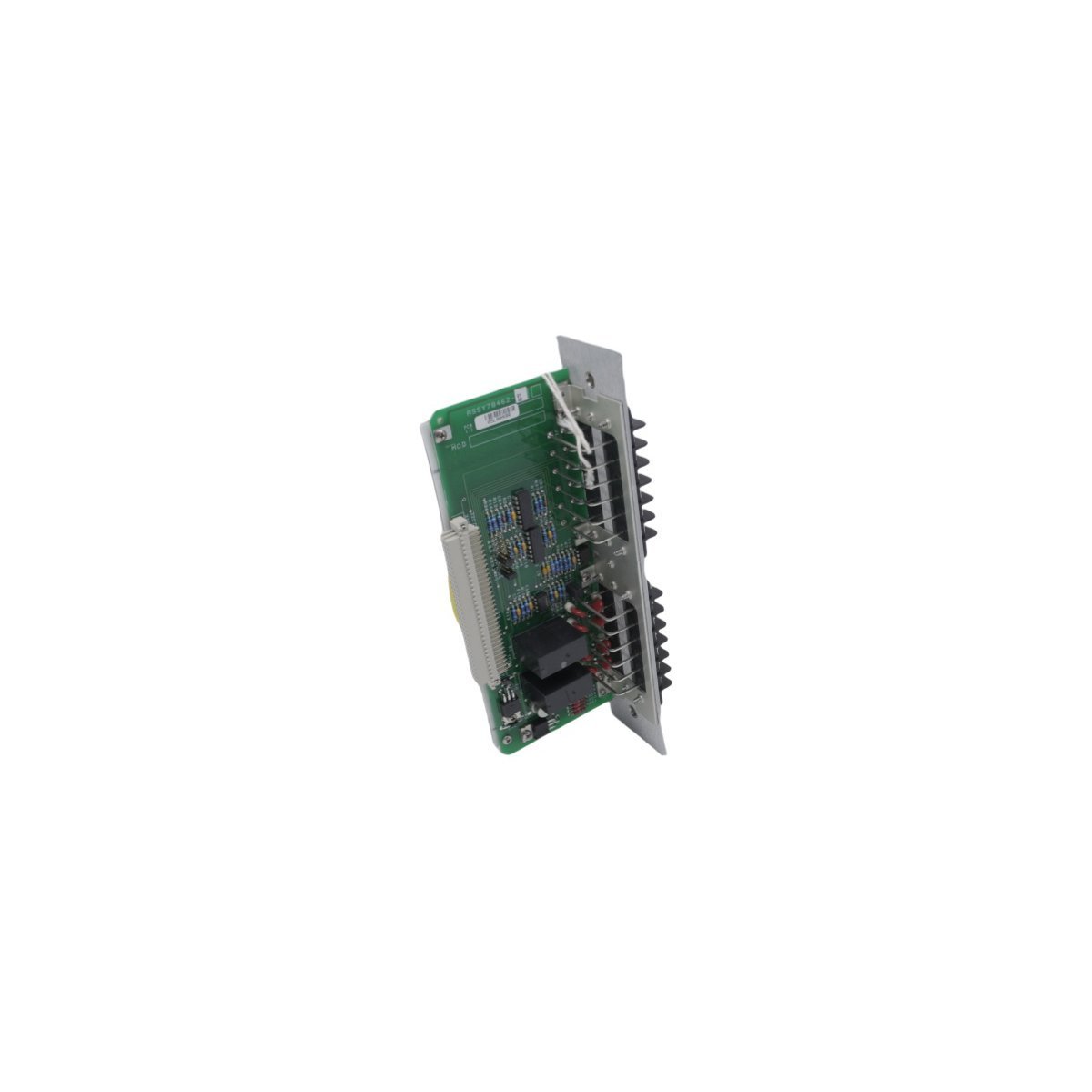

Bently Nevada 84145-01 XDUCR I/O and Record Terminal

Advanced Signal Processing and Terminal Interface

The Bently Nevada 84145-01 functions as a high-integrity I/O interface specifically designed for the 3300 series machinery protection rack. This module captures raw seismic and displacement signals from field-mounted transducers and routes them directly to the monitor backplane. Because industrial environments subject electronics to extreme interference, the 84145-01 incorporates internal filtering to eliminate signal noise and harmonic distortion. Consequently, the terminal ensures that the monitoring system receives an untainted representation of machinery vibration. Furthermore, the unit provides a dedicated recording interface that allows technicians to extract live data for secondary analysis without affecting the primary protection logic.

Technical Specifications and Operational Parameters

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Designation: 84145-01
• Module Function: Transducer (XDUCR) I/O with Buffered Record Outputs
• System Compatibility: Bently Nevada 3300 Monitoring System
• Channel Density: Dual-channel terminal support
• Input Protection: Integrated surge and over-voltage protection per channel
• Connector Style: Heavy-duty screw terminals for secure field wiring
• Environmental Protection: Full epoxy encapsulation for moisture and chemical resistance
• Operating Temperature: -40°C to +85°C (-40°F to +185°F)
• Physical Weight: 0.34 kg
• Housing Dimensions: 5.0 cm x 9.8 cm x 22.8 cm

Engineering Excellence and Field Reliability

The 84145-01 optimizes system reliability by utilizing a dual-channel design that supports redundant transducer configurations. This architecture prevents a single point of failure from compromising the safety of high-value assets like turbines or compressors. In addition to its redundancy features, the module utilizes high-grade epoxy potting to seal internal components against corrosive gases and high-frequency vibration. Meanwhile, the buffered “Record” outputs enable maintenance teams to connect oscilloscopes or dynamic signal analyzers safely. Since these outputs are electronically isolated, the connection of external test equipment cannot introduce faults into the main monitoring loop. Therefore, the terminal serves as both a rugged connection point and a critical safety isolation barrier for the entire TSI (Turbine Supervisory Instrumentation) system.

Core Industrial Applications

• Nuclear Power Generation: Interfacing with seismic sensors on primary cooling pumps and safety systems.
• Petrochemical Processing: Managing vibration data for high-pressure reciprocating and centrifugal compressors.
• Gas Turbine Monitoring: Providing the primary I/O path for casing vibration and shaft displacement sensors.
• Hazardous Area Operations: Supporting machinery protection in Class I, Division 2 environments through certified electrical isolation.
