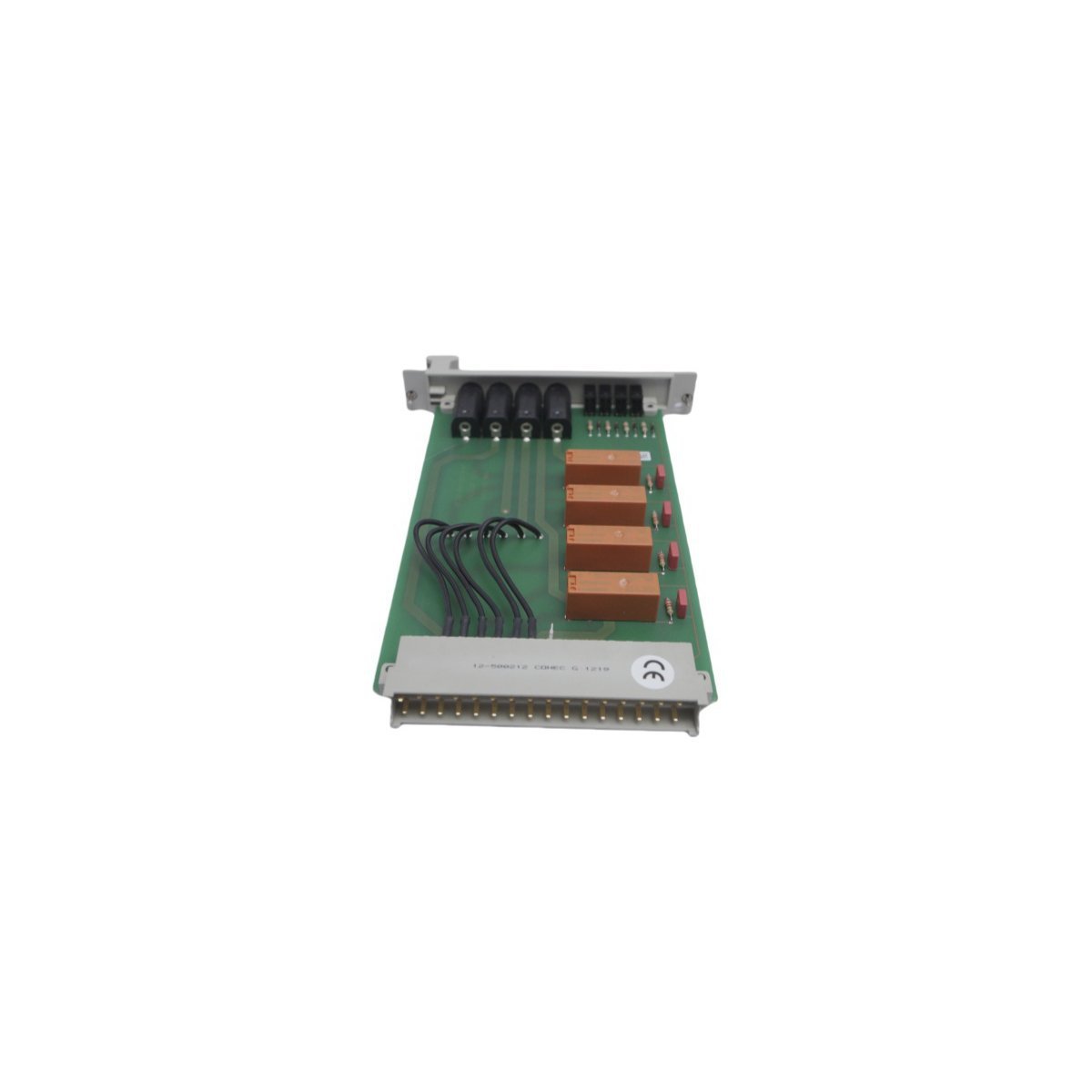

HIMA F3421 Planar F Series Relay Amplifier Module

Technical Overview

The HIMA F3421 serves as a high-integrity relay amplifier module specifically engineered for the Planar F safety system. This German-manufactured component bridges the gap between low-power logic control and high-power field actuators within safety-critical environments. Because the module utilizes a fail-safe design, it effectively manages the de-energization of critical loads during emergency shutdown (ESD) scenarios. By providing robust galvanic isolation between the internal system bus and external field circuits, the F3421 protects sensitive automation hardware from voltage surges and electrical noise.

Operational Logic and Safety Performance

The F3421 manages four independent switching channels, each capable of handling significant electrical loads without compromising signal integrity. To facilitate precise control, the module translates digital logic signals into mechanical relay actions, enabling the safe operation of solenoid valves, motor starters, and large-scale alarm systems. Moreover, since HIMA constructs these modules with high-performance materials, the F3421 maintains consistent switching speeds even when operating in high-vibration or thermally demanding industrial settings.

To further enhance system reliability, the module supports seamless integration with Distributed Control Systems (DCS) through various communication architectures, including Ethernet-based routing. This connectivity allows the supervisory system to monitor output states and diagnostic health in real-time. In addition to its core amplification function, the board features an intuitive physical layout. Consequently, technicians can execute rapid hardware swaps and maintenance tasks, which significantly minimizes facility downtime and optimizes production efficiency.

Key Technical Characteristics

• Brand: HIMA
• Model Number: F3421
• System Family: Planar F
• Product Type: Relay Amplifier Module
• Country of Origin: Germany
• Safety Integrity: Suitable for high-demand safety applications
• Channel Configuration: 4 Independent Output Channels
• Switching Capacity: Supports high-current industrial loads
• Mounting Format: Standard European PCB format (2cm x 18.8cm x 12.8cm)
• Environmental Protection: Industrial-grade coating for harsh conditions
• Diagnostic Support: Front-panel LED status indicators

Primary Applications

• Controlling emergency shutdown valves in offshore oil and gas platforms.
• Managing safety-related interlocks for chemical reactor cooling systems.
• Driving high-load actuators in fire and gas (F&G) protection networks.
• Isolating control signals for high-voltage power distribution equipment.
• Synchronizing safety-critical machinery in automated manufacturing lines.
