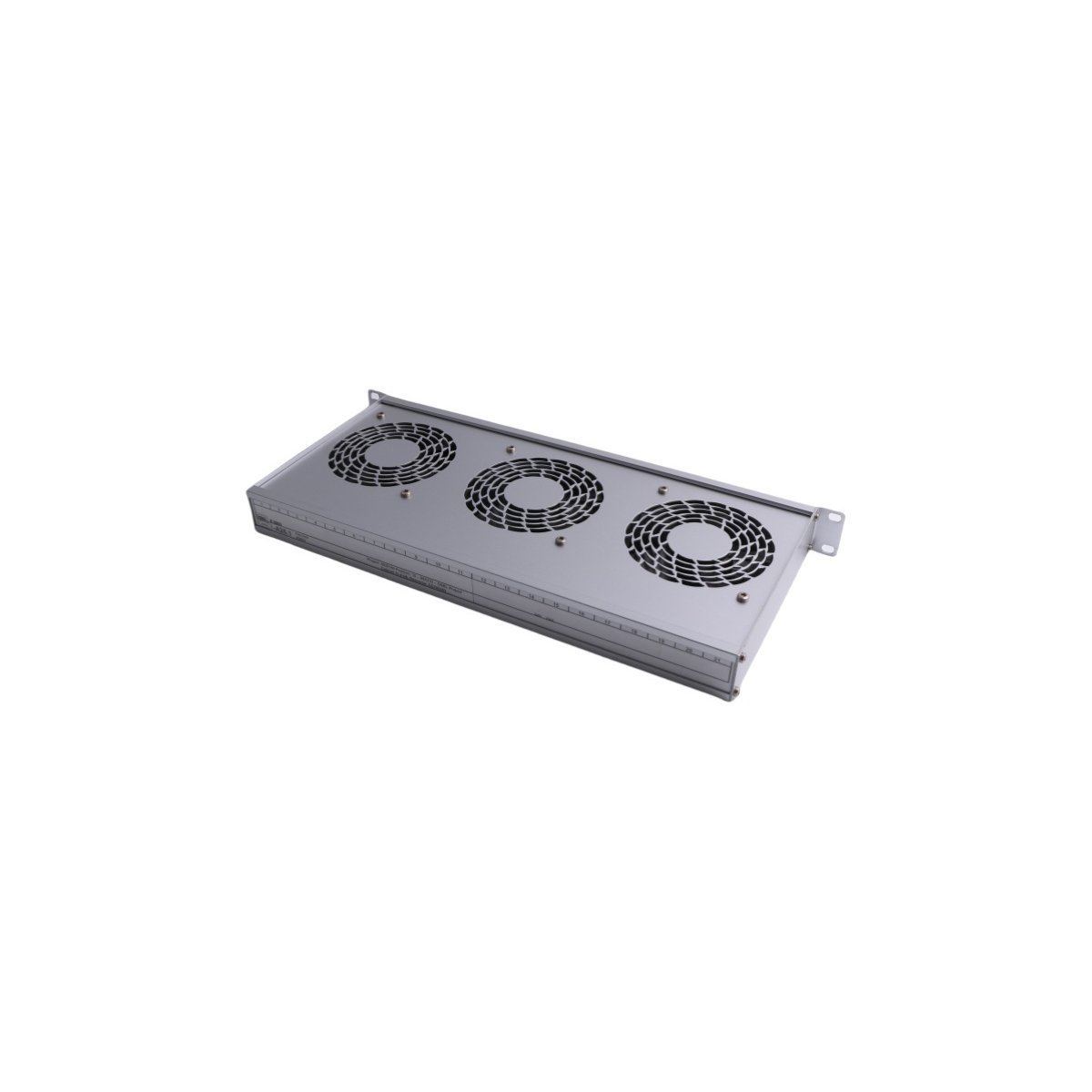

HIMA K9203 T4 Fan Module

Technical Overview

The HIMA K9203 T4 operates as a high-performance cooling unit specifically engineered for the HIMA H41q and H51q safety-related systems. This module functions as a critical thermal management component, ensuring that heat-sensitive logic cards and processors remain within their optimal operating temperature ranges. Because safety-critical electronics generate significant heat during continuous operation, the K9203 T4 provides a constant, high-volume airflow through the system subrack. By preventing thermal buildup, this fan module effectively extends the lifespan of internal components and prevents hardware failures associated with overheating.

Operational Logic and Reliability Features

The K9203 T4 manages the cabinet environment by utilizing a multi-fan array that provides redundant cooling capabilities. To ensure maximum system uptime, the module incorporates internal speed monitoring for each individual fan. Furthermore, the unit features an integrated alarm relay that signals the central controller if a fan failure or a significant drop in airflow occurs. Moreover, since the K9203 T4 utilizes high-grade industrial bearings, it maintains a long service life even when operating in the 24/7 duty cycles typical of oil and gas or power generation facilities.

To further simplify maintenance, the module supports “hot-swap” functionality, allowing technicians to replace the cooling unit without de-energizing the safety system or interrupting logic execution. In addition to its cooling performance, the K9203 T4 features a rugged metal housing that integrates seamlessly into standard HIMA 19-inch subracks. Consequently, the module’s airflow path is precisely aligned with the ventilation slots of the processing cards. As a result, the K9203 T4 serves as an essential safeguard for maintaining the reliability and safety integrity of the entire automation system.

Key Technical Characteristics

• Brand: HIMA
• Model Number: K9203 T4
• Product Series: H41q / H51q Safety Systems
• Product Type: Fan Module / Cooling Unit
• Fan Configuration: High-speed multi-fan array
• Monitoring: Integrated speed and failure detection
• Alarm Output: Potential-free contact for system diagnostics
• Mounting: 19-inch rack-mount (typically occupies 1U or 2U)
• Supply Voltage: 24 VDC (nominal)
• Operating Temperature Range: Optimized for high-density electronic enclosures

Primary Applications

• Maintaining optimal temperatures for SIL 3 processors in refinery control rooms.
• Preventing thermal trips in offshore emergency shutdown (ESD) system racks.
• Cooling high-density I/O configurations in burner management systems (BMS).
• Providing reliable ventilation for safety-critical logic in chemical plants.
• Ensuring the longevity of power plant protection hardware in warm climates.
