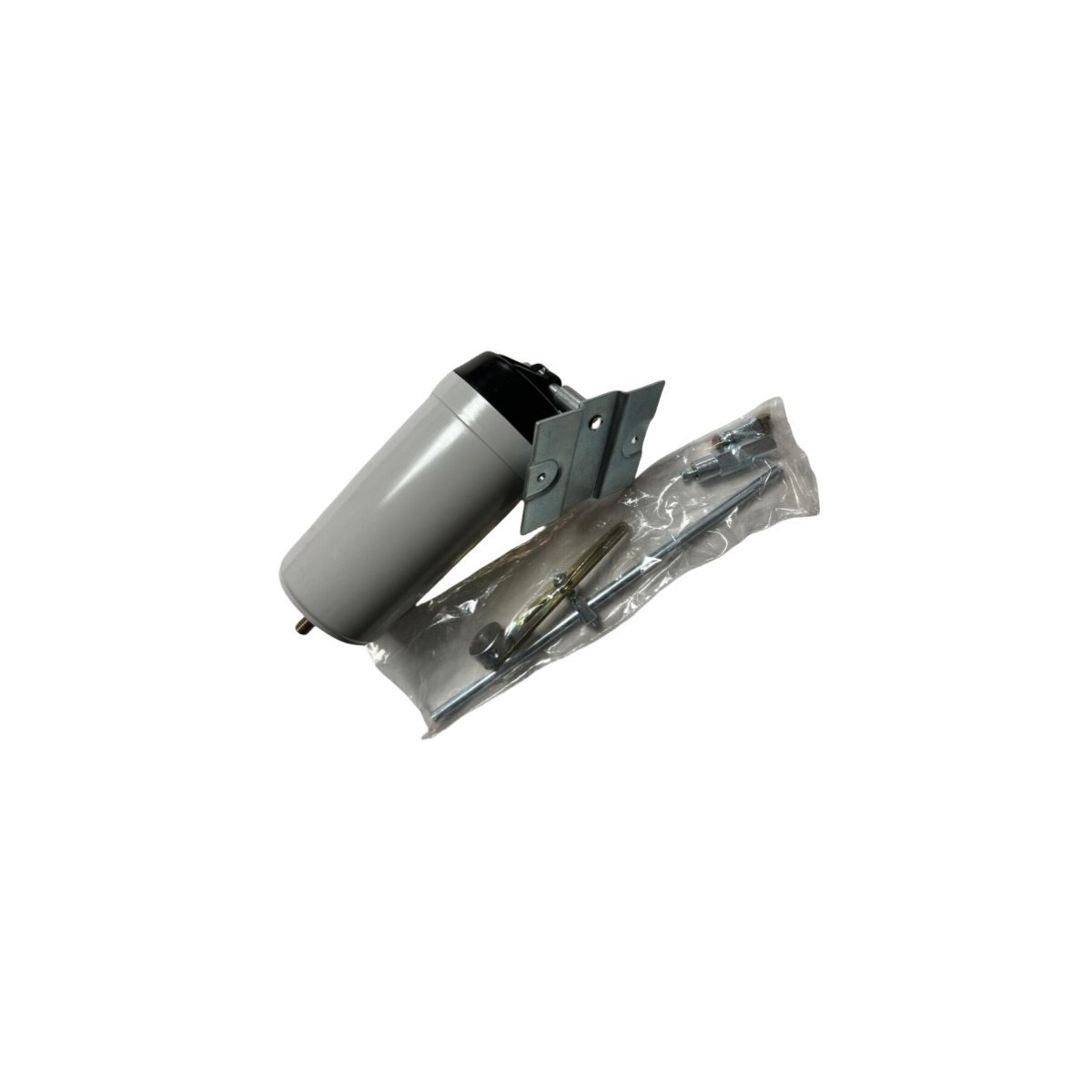

Honeywell MP913C1066-1 Pneumatic Damper Actuator Shaft Connection

The Honeywell MP913C1066-1 is a high-reliability pneumatic damper actuator featuring a precision shaft connection. Designed for industrial DCS and HVAC systems, it offers IP65 protection and stainless steel construction for extreme environments.

Request a Quote

Product Overview

The Honeywell MP913C1066-1 is a robust pneumatic damper actuator designed for precision airflow regulation in industrial HVAC and process control environments. This module converts pneumatic pressure into mechanical force to modulate dampers, ensuring consistent system stability. By utilizing a high-performance shaft connection, the MP913C1066-1 provides a secure mechanical interface that eliminates slippage and maintains accurate positioning throughout the actuation cycle.

Constructed with industrial-grade materials, including stainless steel components, the actuator resists corrosion and mechanical fatigue. Because it features an IP65-rated enclosure, the unit remains operational in settings prone to dust and moisture ingress, such as power generation facilities and chemical manufacturing plants. Furthermore, the wide thermal operating range allows the module to function reliably under extreme temperature fluctuations without compromising response speed or accuracy.

Integrated seamlessly into DCS (Distributed Control System) frameworks, the MP913C1066-1 supports automated environmental management. The device complies with UL and CE safety standards, providing an internationally recognized foundation for safety and performance in mission-critical applications.

Technical Specifications

  • Brand: Honeywell
  • Model Identification: MP913C1066-1
  • Product Series: HDLS Series
  • Module Function: Pneumatic Damper Actuator / Shaft Connection
  • System Integration: DCS / HVAC Control
  • Ingress Protection: IP65 Rated (Dust-tight and water-resistant)
  • Material Composition: Durable Stainless Steel and Industrial Alloys
  • Compliance Standards: UL Certified, CE Marked
  • Country of Origin: USA
  • Physical Dimensions: 15 cm x 3.5 cm x 8 cm
  • Net Weight: 0.65 kg
