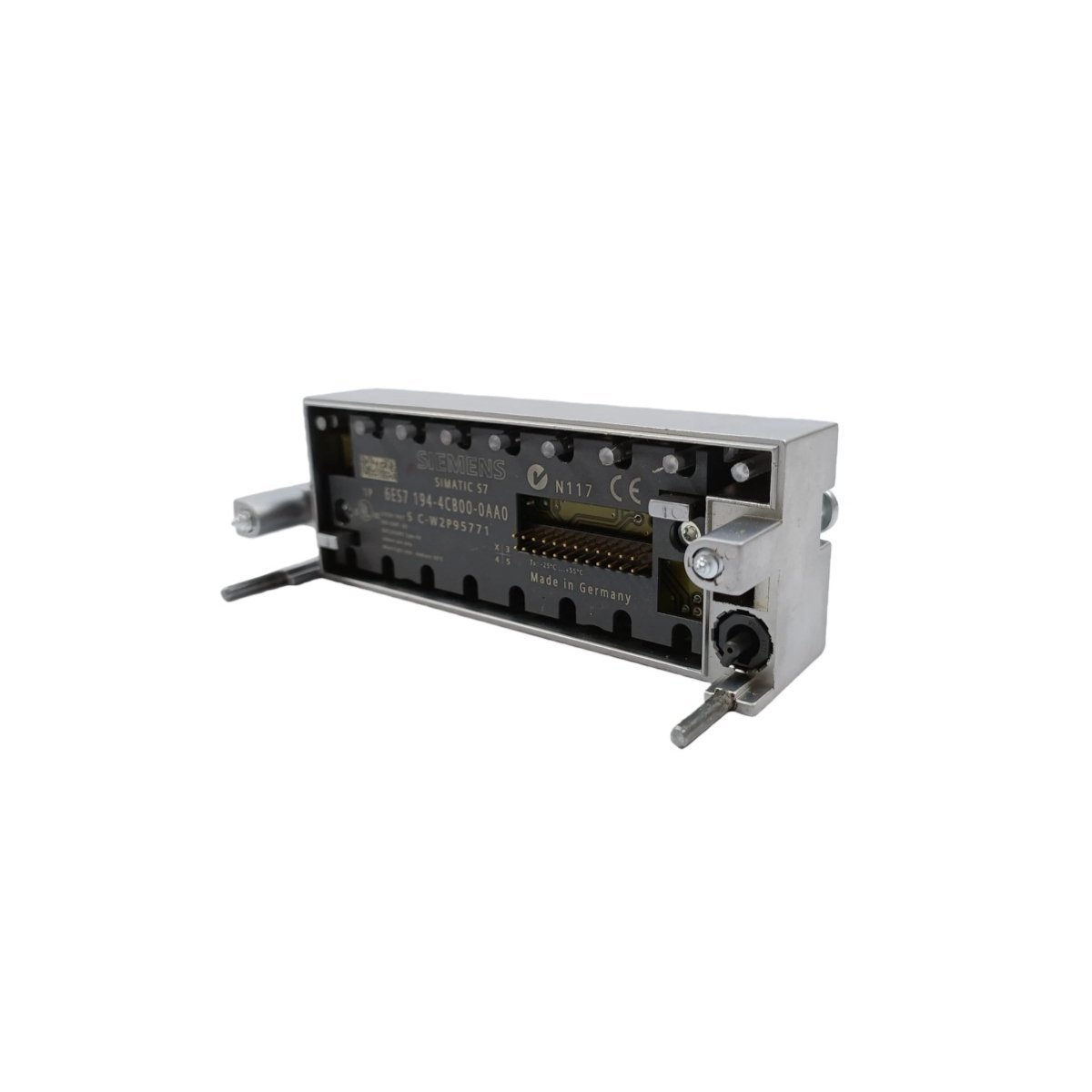

Siemens 6ES7194-4CB00-0AA0 SIMATIC DP ET 200PRO Connection Module

Technical Overview

The Siemens 6ES7194-4CB00-0AA0 functions as a specialized CM IM DP Direct connection module designed specifically for the SIMATIC ET 200pro distributed I/O system. This module actively facilitates the physical interface between the interface module (IM) and the PROFIBUS DP network. By providing a ruggedized termination point for bus cables, the 6ES7194-4CB00-0AA0 ensures that high-speed communication signals remain stable in decentralized architectures without the need for a protective control cabinet. In essence, it acts as the primary hardware gateway for network connectivity, thereby allowing the ET 200pro station to exchange data with the central PLC over long distances with high reliability.

Key Features and Specifications

• Manufacturer: Siemens
• Product Range: SIMATIC DP / ET 200pro
• Model Identifier: 6ES7194-4CB00-0AA0
• Component Type: Connection Module (CM IM DP Direct)
• Application: Interface for PROFIBUS DP communication
• Connection Method: Direct screw-type terminal connection for bus cables
• Protection Rating: IP65/IP67 (Dust-tight and water-resistant)
• Design: Cabinet-free, modular form factor
• Compatibility: Specifically designed for ET 200pro Interface Modules

Functional Integration and Network Stability

The 6ES7194-4CB00-0AA0 manages the complexities of field-level networking by providing a secure, vibration-resistant termination for PROFIBUS DP wiring. This module actively protects the electrical integrity of the communication link; consequently, it prevents signal reflections and data packet loss even in environments with heavy mechanical stress. In addition to this physical security, the module incorporates integrated shielding logic that minimizes the impact of electromagnetic interference (EMI). Building upon this robustness, the module utilizes specialized internal routing to maintain constant impedance across the connection point.

Furthermore, the 6ES7194-4CB00-0AA0 revision features a high-grade thermoplastic housing that withstands oil, chemicals, and UV exposure. As a result of this industrial-strength construction, the connection module sustains reliable data throughput in “on-machine” applications where standard cabinet-mounted hardware would fail. Moreover, the unit supports the “daisy-chain” wiring method; accordingly, it allows for the efficient expansion of the PROFIBUS network to multiple decentralized stations. In light of these mechanical advantages, the system provides a resilient communication backbone that reduces the need for expensive protective enclosures. Beyond these physical traits, the module facilitates rapid assembly, thus decreasing the time required for field commissioning.

Application and Reliability

Control engineers prioritize the Siemens 6ES7194-4CB00-0AA0 for demanding sectors such as automotive manufacturing, conveyor systems, and food and beverage processing. The module provides the IP67-rated protection necessary to operate directly on the factory floor, where it is frequently exposed to wash-down procedures and metal shavings. In conjunction with its modular design, the 6ES7194-4CB00-0AA0 facilitates rapid hardware maintenance, thereby allowing technicians to replace an interface module without disturbing the permanent network wiring. Along the same lines, the module complies with strict global automation standards, ensuring its compatibility with international SIMATIC installations.

Because the module features a clear, accessible terminal layout, it simplifies the initial installation process and minimizes the risk of wiring errors. Correspondingly, this standardized connection method streamlines troubleshooting by providing a reliable and visible access point for network diagnostics. Ultimately, the 6ES7194-4CB00-0AA0 delivers the stable PROFIBUS connectivity and mechanical durability required to manage decentralized automation tasks, thus upholding the operational integrity of global Siemens-based safety and control systems. In summary, this connection module serves as a critical bridge for any high-performance, cabinet-free I/O architecture.
