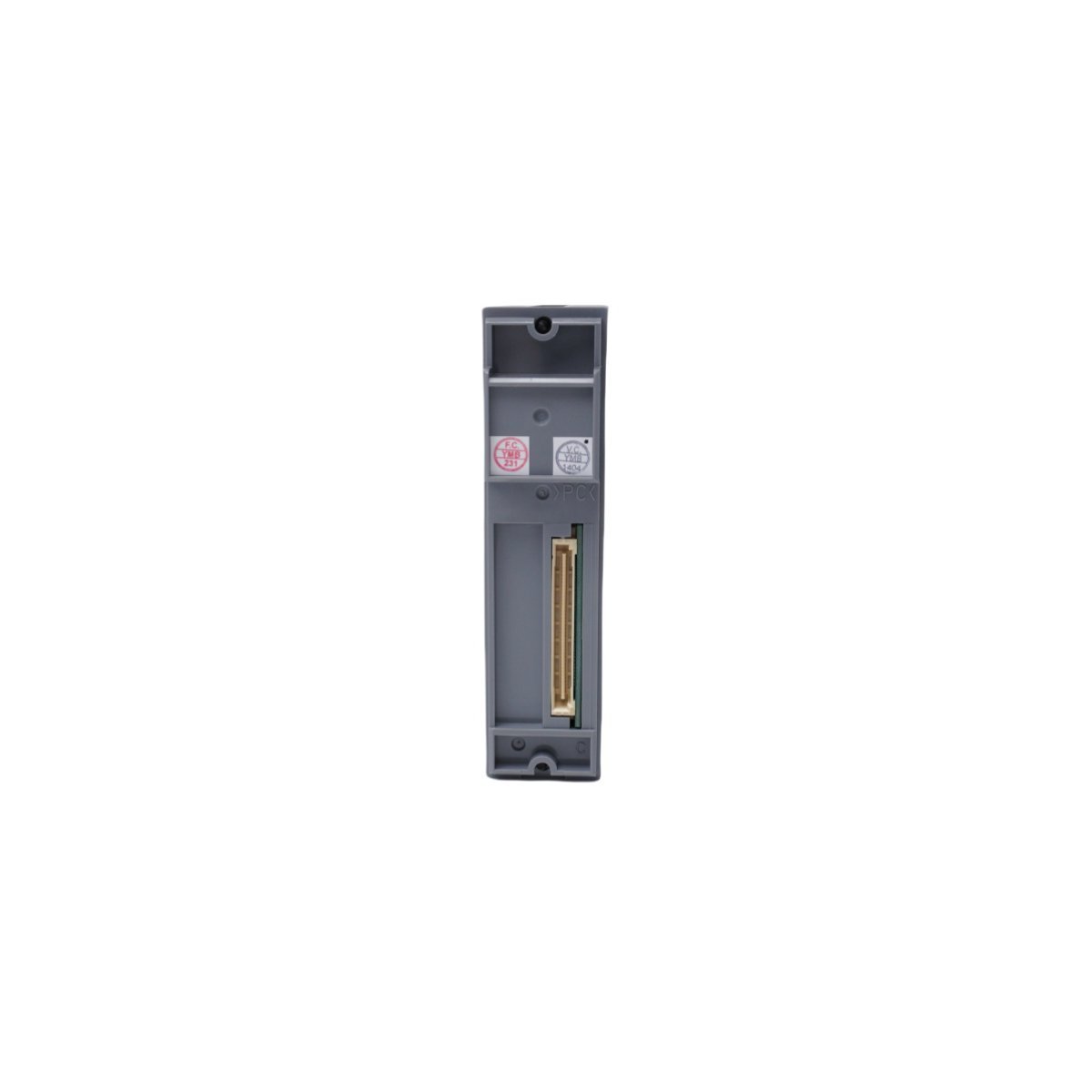

Yokogawa SB401-50 ESB Bus Interface Slave Module

High-Speed Data Communication and System Extension

The Yokogawa SB401-50 serves as a critical ESB Bus Interface Slave Module within the CENTUM VP and CENTUM CS 3000 distributed control systems (DCS). This module facilitates the high-speed connection between a Field Control Station (FCS) and remote I/O node units via the ESB bus. By converting communication signals, the SB401-50 allows the central processor to manage decentralized I/O modules across multiple racks with minimal latency. Furthermore, this “Slave” unit resides in the I/O node cabinet, receiving instructions from the master module to ensure that process data and control commands flow synchronously. Consequently, this interface is essential for expanding the I/O capacity of large-scale industrial automation projects.

Redundant Architecture and Enhanced Reliability

To maintain maximum plant availability, the SB401-50 supports a dual-redundant configuration, which effectively eliminates single points of failure within the communication chain. In this setup, two slave modules operate in tandem; if one unit detects a fault, the system immediately switches to the backup module without interrupting the control process. Moreover, the hardware utilizes a high-reliability bus interface that suppresses electrical noise and ensures signal integrity over the length of the ESB cable. Because the module incorporates continuous self-diagnostics, it can identify communication errors or internal hardware degradation in real-time. As a result, this fault-tolerant design provides the high level of uptime required for continuous processes in oil refineries and chemical plants.

Streamlined Integration and Maintenance

Yokogawa has engineered the SB401-50 for simplified installation within standard I/O node units (such as the ANB10). The module features a hot-swappable design, which allows maintenance personnel to replace a module while the system remains powered and the process stays online. Additionally, the unit includes front-panel LED indicators that provide an immediate visual status of the bus link and the module’s operational health. Because the CENTUM VP software automatically recognizes the module upon insertion, the commissioning process for new I/O racks is significantly accelerated. This focus on ease of use and rapid diagnostics ensures that maintenance teams can minimize the Mean Time to Repair (MTTR) and keep critical automation loops functioning at peak efficiency.

Technical Specifications

• Manufacturer: Yokogawa
• Product Series: CENTUM VP / CENTUM CS 3000
• Model Number: SB401-50
• Module Type: ESB Bus Interface Slave Module
• Compatibility: Used in Node Units (ANB10S, ANB10D)
• Communication Speed: 128 Mbps
• Transmission Distance: Max 10 meters (ESB Bus cable)
• Redundancy: Supports dual-redundant configuration
• Power Consumption: Max 0.5 A at 5 VDC
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -20°C to +70°C
• Weight: Approximately 0.25 kg
• HS Code: 85176200
