HONEYWELL Experion C300 CC-GDOL11 Digital Output IOTA Module

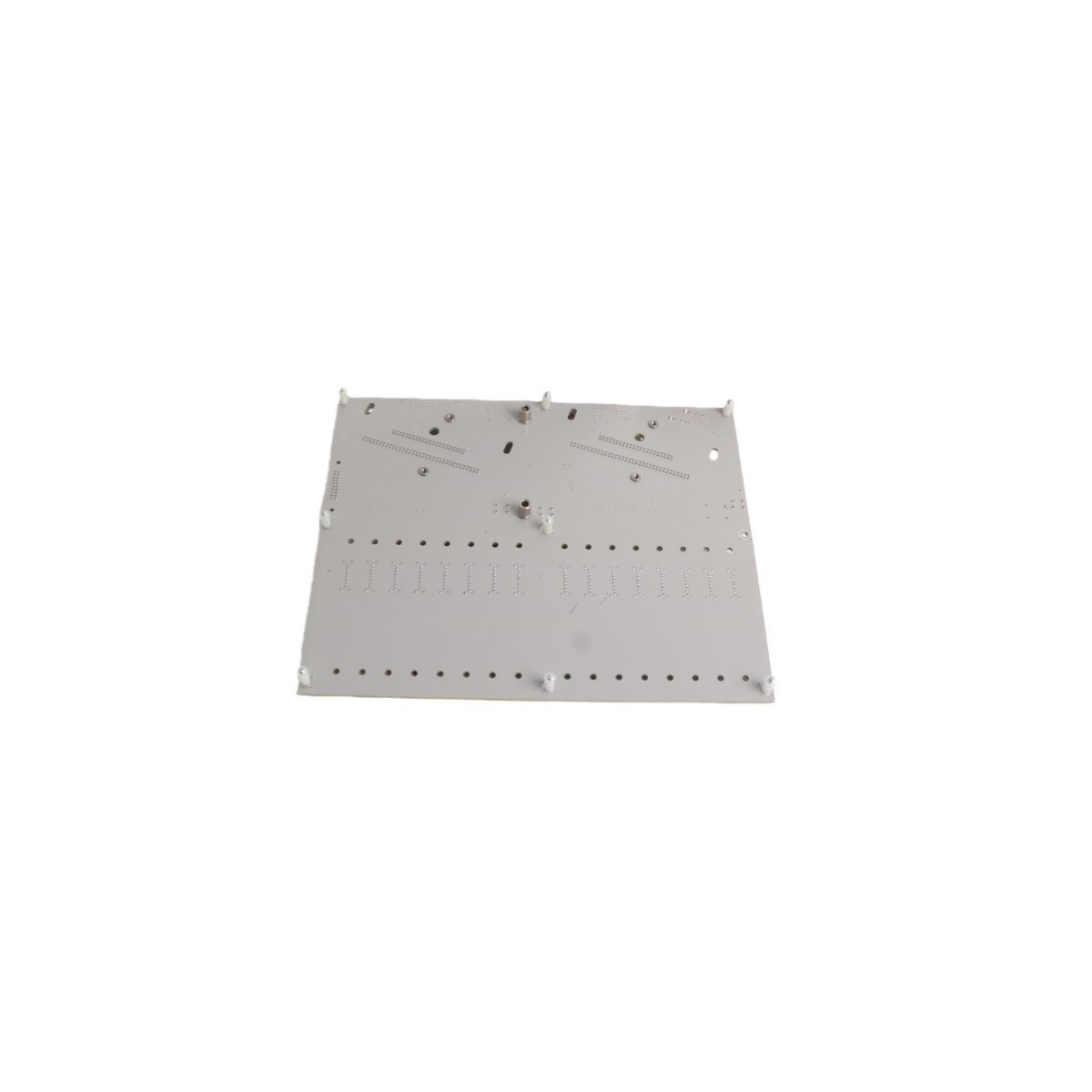

The Honeywell CC-GDOL11 is a coated, high-density Digital Output Input Output Termination Assembly (IOTA) module belonging to the Experion® Process Knowledge System (PKS) C300 controller platform. Acting as the physical connection base for active C300 digital output cards, this IOTA delivers 24 VDC switched outputs to field control loops. It features specialized electrical circuitry and safety metrics designed to interface with intrinsic safety barriers, rendering it ideal for deployment alongside simple apparatus, solenoid valves, and indicator arrays located within hazardous or classified plant areas.

Hardware Specifications

Intrinsic Safety Parameters & Channel Dynamics

The primary engineering distinction of the CC-GDOL11 is its design integration with intrinsic safety barriers (such as MTL 4521 isolating drivers). It enforces stringent electrical energy thresholds to ensure field loops lack the thermal or electrical spark capacity to trigger an explosion in gaseous or volatile atmospheres:

• Voltage Limit ($V_o$): 25 V
• Current Limit ($I_o$): 147 mA
• Power Limit ($P_o$): 919 mW

When a control channel transitions to an active state, the system provides an optimized electrical output profile of 12.8V at 48mA. This energy profile delivers sufficient actuation power to trip industrial low-power solenoids and audio/visual field alarms while remaining safely below the ignition curve of hazardous environments.

Frequently Asked Questions

Q: What is the purpose of an “IOTA” compared to a standard I/O module? A: In the Honeywell C300 architecture, the Input Output Termination Assembly (IOTA) is the passive base block containing the field wiring terminal blocks, internal power routing rails, and module slot connectors. The active control electronics (the I/O module itself) plug directly onto the IOTA. This allows for rapid swapping of active electronic components without lifting a single field wire.

Q: What does the “CC-” prefix signify on this part number? A: The “CC-” prefix indicates that the assembly boards have been manufactured with a conformal coating. This thin polymeric protective film shields the sensitive electronic traces against dust, moisture, salt spray, and corrosive airborne chemicals (such as hydrogen sulfide) common in refinery environments.

Field Installation Guidelines

• Carrier Grounding: Ensure the underlying DIN rail carrier assembly is securely tied to the plant’s structural safety ground bus. Proper grounding allows the IOTA to safely shunt unwanted electrical transients away from the signal paths.
• Isolator Power Constraints: To control thermal load build-up inside enclosed marshalling cabinets, confirm that power dissipation stays within the nominal limit of 1.4W per active isolating barrier.
• LED Diagnostics: Utilize the integrated onboard channel LEDs for fast physical diagnostics. The status indicators provide instant visual confirmation of loop power states, eliminating the need to take manual multimeter measurements during initial loop commissioning.
